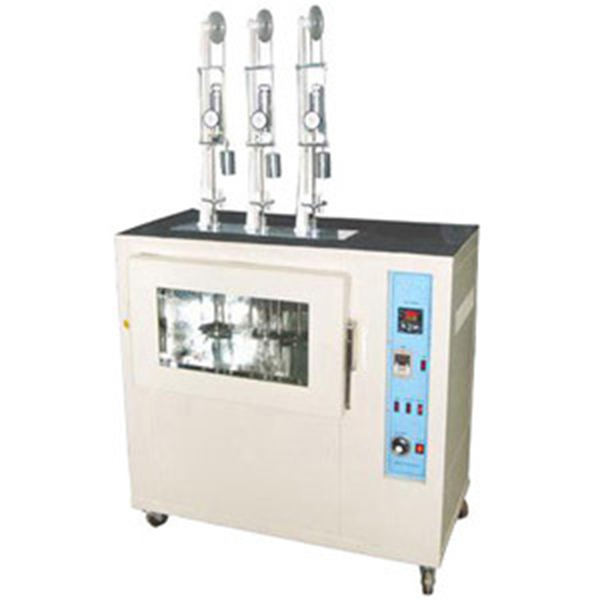

Wire Heating Deformation Testing Machine
Features
Wire Heating Deformation Testing Machine
The machine is used to test the degree of thermal deformation of plastics and wire skins, etc. The test piece is placed freely at a specific temperature for 30 minutes and then clamped between parallel plates of the machine, with a specified load, and placed at the same temperature for another 30 minutes, then the difference between the thickness of the gauge before and after heating, divided by the thickness before heating, in percentage, is the deformation rate.
Product advantages
Wire Heating Deformation Testing Machine
| Number of groups | 3 groups |
| Weights | 50,100,200,500,1000g, 3 groups |
| Temperature | Normal temperature to 200°C, commonly used 120°C |
| Thickness gauges | 0.01~10mm |
| Volume(W*D*H) | 120×50×157cm |
| Weight | 113kg |
| Control accuracy | ±0.5ºC |
| Resolution accuracy | 0.1°C |
| Power supply | 1∮,AC220V,15A |
| Current | MAX 40A |
Wire Heating Deformation Testing Machine
Machine construction and materials:
| Inner box size | 60 cm (W) x 40 cm (D) x 35 cm (H) |
| Outer box size | 110 cm (L) x 48 cm (D) x 160 cm (H) |
| Inner box material | SUS#304 stainless steel |
| Outer box material | 1.25mm A3 steel, with electrostatic baking paint |
Wire Heating Deformation Testing Machine
Deformation measuring device:
| Three Japanese MITUTOYO gauges are used. | |
| Using balance hammer to offset the external load | |
| Deformation resolution | 0.01mm |
| Load weights | 50g, 100g, 200g, 500g, 1000g each three |
