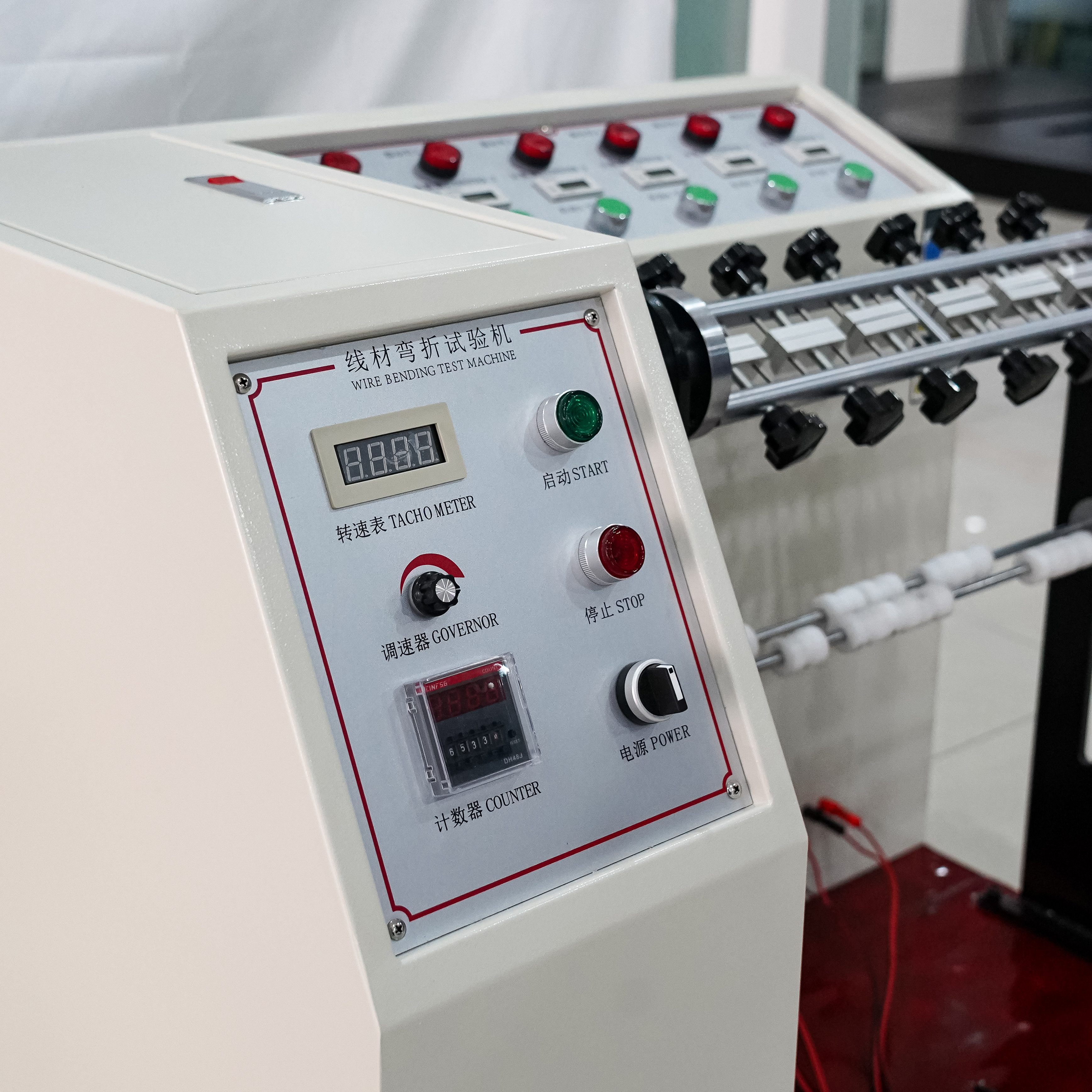

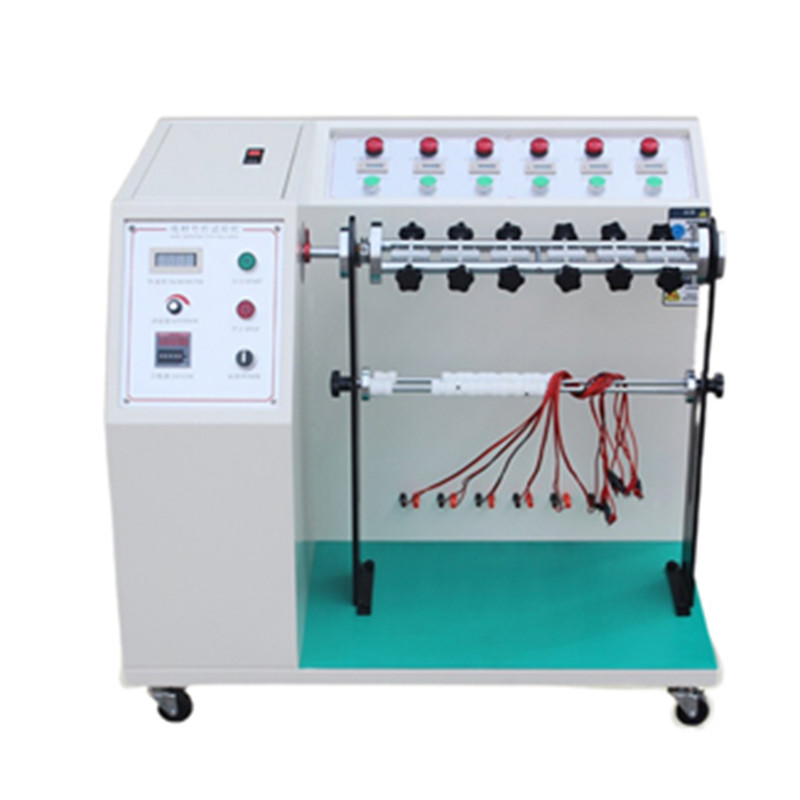

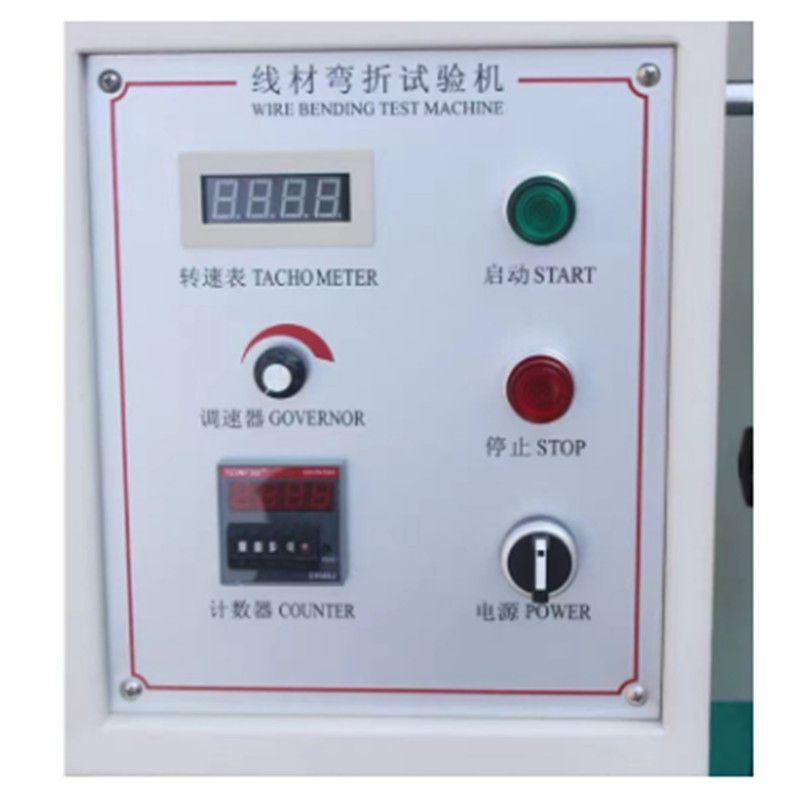

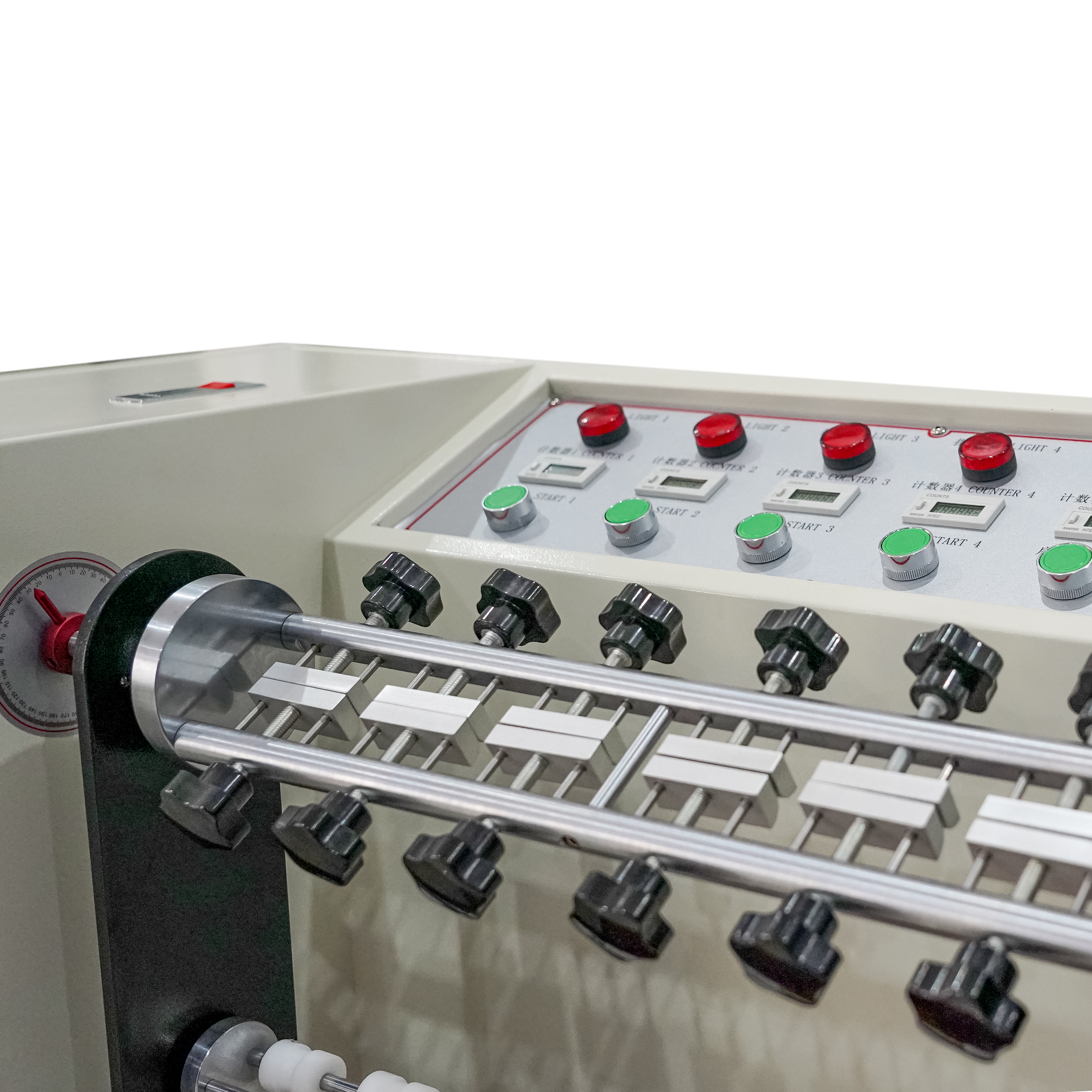

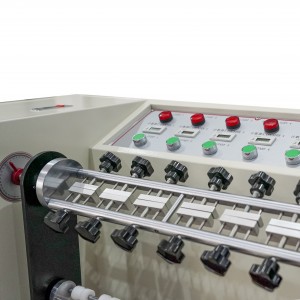

Wire bending and swing testing machine

Short Description:

Wire bending and swing testing machine, is the abbreviation of swing testing machine. It is a machine that can test the bending strength of plug leads and wires. It is suitable for relevant manufacturers and quality inspection departments to conduct bending tests on power cords and DC cords. This machine can test the bending strength of plug leads and wires. The test piece is fixed on a fixture and then weighted. After bending to a predetermined number of times, the breakage rate is detected. Or the machine automatically stops when power cannot be supplied and the total number of bends is checked.


Product Detail

Product Tags

Application

Wire Swing Testing Machine:

Application: Wire rocking and bending testing machine is a device used to test the durability and bending performance of wires or cables under rocking and bending conditions. It simulates the swing and bending stress in real use environments by subjecting wires or cables to reciprocating swing and bending loads, and evaluates their reliability and durability during long-term use. Wire swing bending testing machine can be used to test various types of wires and cables, such as power lines, communication lines, data lines, sensor lines, etc. By conducting rocking bending tests, key indicators such as fatigue resistance, bending life, and fracture resistance of wires or cables can be evaluated. These test results can be used for product design, production control and quality inspection to ensure that the reliability and durability of wires or cables comply with relevant standards and requirements.

Test skills: The test is to fix the sample on the fixture and add a certain load. During the test, the fixture swings left and right. After a certain number of times, the disconnection rate is checked; or when power cannot be supplied, the total number of swings is checked. This machine can automatically count, and can automatically stop when the sample is bent to the point where the wire is broken and power cannot be supplied.

Item Specification
Test rate 10-60 times/min adjustable
Weight 50、100、200、300、500g  each 6
Bending Angle 10°-180° adjustable
Volume 85*60*75cm
Station 6 plug leads are tested at the same time
Bending times 0-999999 can be preset
