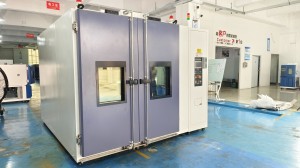

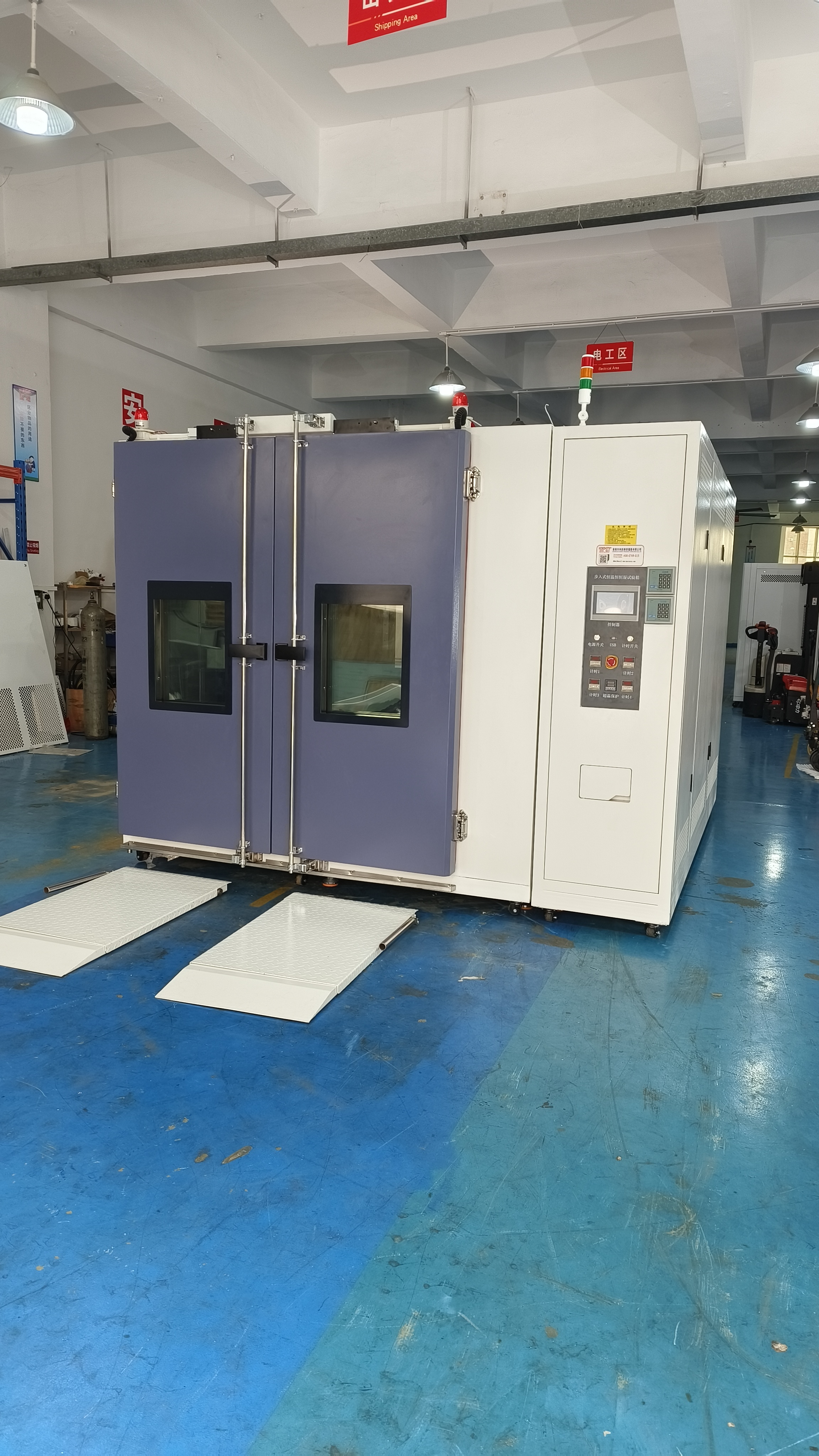

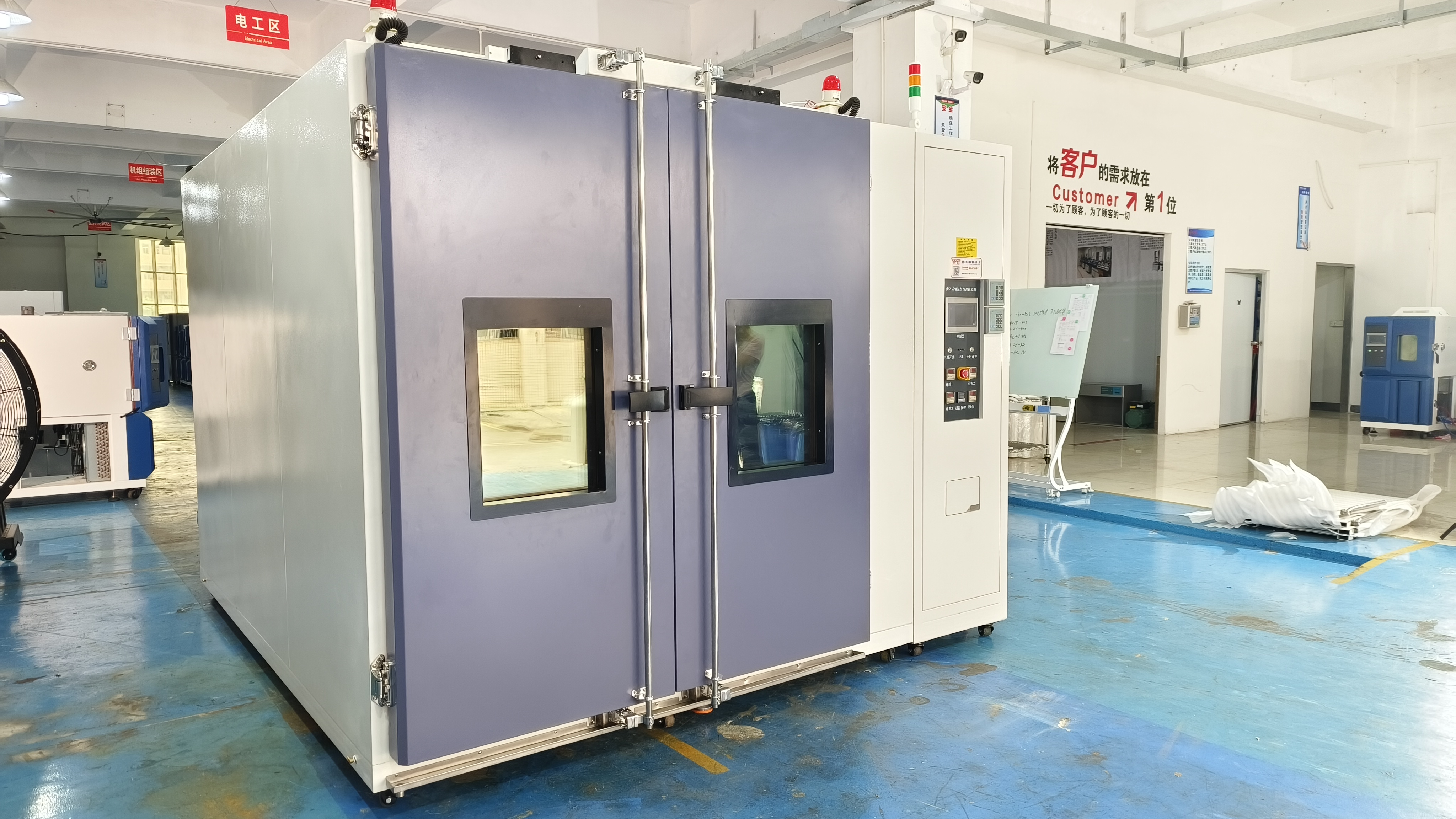

Walk-in Constant Temperature and Humidity Room
Application
The outer frame structure of this equipment is made of double-sided colour steel heat preservation library board combination, the size of which is ordered according to the customer's requirements, and is configured according to different requirements. The aging room is mainly composed of box, control system, wind circulation system, heating system, time control system, test load and so on.
♦ Function description:
walk-in constant temperature and humidity room, aging room, high-temperature aging room, ORT room, also known as the burn room, is for high-performance electronic products (such as: computer machine, display, terminal, automotive electronics, power supply, motherboards, monitors, switching chargers, etc.) simulation of a high-temperature, harsh environment testing equipment, is to improve product stability, reliability of the important experimental equipment is the production enterprises to improve product quality and competitiveness. The production enterprises to improve product quality and competitiveness of the important production process, the equipment is widely used in power electronics, computers, communications, biopharmaceuticals and other fields.
Through the aging test, can check out the defective products or defective parts, for customers to quickly find out the problem and solve the problem provides an effective means to fully improve the customer's production efficiency and product quality.
| Model | KS-BW1000 | |||||
| Internal Dimensions | Customized to customer specified specifications | |||||
| Inner box volume | 10m³ | 15m³ | 20m³ | 30m³ | 50m³ | 100m³ |
| Temperature Range | (A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃)-70℃-+100℃(150℃) | |||||
| humidity Range | 20%~98%R.H. (10%-98%R.H/5%~98%R.H are special selection conditions) | |||||
| Analytic Accuracy/Evenness Degree of Temperature and Humidity | ±0.1℃; ±0.1%R.H./ ±1.0℃; ±3.0%R.H. | |||||
| Precision Temperature Control/Fluctuation | ±0.1℃ ; ±2.0%R.H./ ±0.5℃; ±2.0%R.H. | |||||
| Temperature Rising /Falling Time | 4.0°C/min; approx. 1.0°C/min (5 to 10°C drop per minute for special selection conditions) | |||||
| Inner and Outer Materials | High-grade cold plate nano-baked lacquer on the outer box and stainless steel on the inner box | |||||
| Insulation Material | High temperature resistant high density vinyl chloride foam insulator | |||||
| Cooling System | Air-cooled/single-stage compressors (-20°C). Air- and water-cooled / two-stage compressors (-40°C - 70°C). | |||||
| Security Protection Devices | Fuse-less switch, compressor overload protection switch, refrigerant high and low pressure protection switch, over-humidity and over-temperature protection switch, fuse, fault warning system | |||||
| Accessories | Viewing window, 50 mm test hole, PL box interior light, divider, wet and dry ball gauze | |||||
| Controller | South Korea "TEMI" or Japan's "OYO" Brand, optional | |||||
| Compressor | "Tecumseh" | |||||
| Power supply | 1Φ220VAC ± 10% 50/60HZ & 3Φ380VAC ± 10% 50/60HZ | |||||
A walk-in constant temperature and humidity chamber is a device used to simulate specific environmental conditions and is commonly used in laboratories, scientific research and manufacturing fields. It has a large space capacity for personnel entry and provides a constant temperature and humidity environment. A walk-in constant temperature and humidity room usually consists of a temperature control system, a humidity control system, a circulation fan, and humidity generation equipment. Temperature control systems keep the temperature in a room stable through heating or cooling. Humidity control systems maintain stable indoor humidity through humidification or dehumidification. Circulation fans can help achieve even temperature and humidity distribution, making environmental conditions consistent throughout the home. Humidity generating equipment can generate the required humidity water vapor as needed. Walk-in constant temperature and humidity chambers can be used for a variety of applications, such as materials testing, pharmaceutical stability studies, electronic device testing and storage, etc. In laboratory research, it can provide controlled environmental conditions so that researchers can conduct precise experiments and evaluations. In the manufacturing field, it can be used for product quality control and batch testing to ensure stable performance of products under specific environments. When using a walk-in constant temperature and humidity chamber, you need to set the required temperature and humidity according to actual needs and follow the equipment operating procedures. At the same time, equipment needs to be regularly maintained and calibrated to ensure proper operation and accurate control of environmental conditions.
