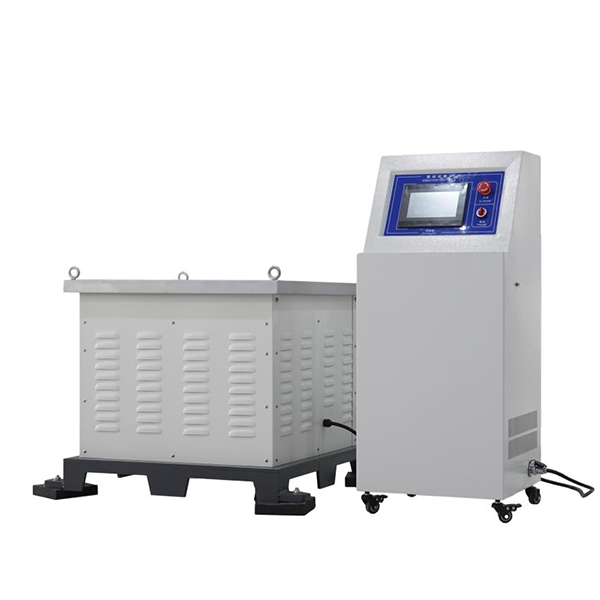

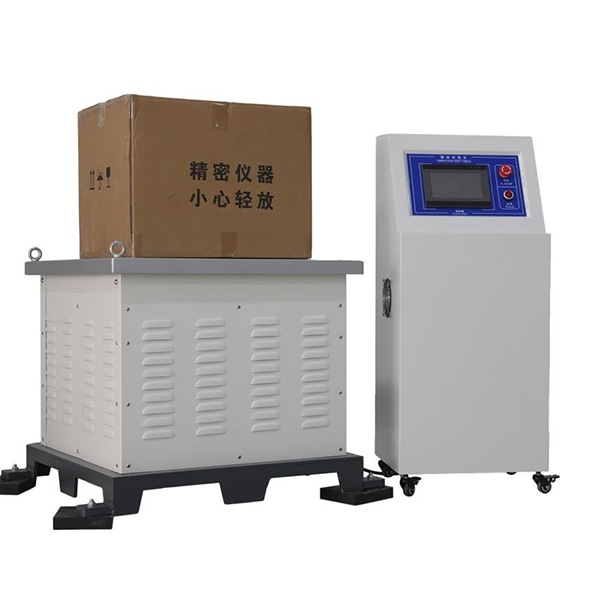

Three-axis Electromagnetic Vibration Test Table

Short Description:

Three-axis series electromagnetic vibration table is an economic, but ultra-high cost performance of a sinusoidal vibration test equipment (function function cover fixed frequency vibration, linear sweep frequency vibration, log sweep frequency, frequency doubling, program, etc.), In the test chamber to simulate the electrical and electronic products in the transportation (ship, aircraft, vehicle, space vehicle vibration), storage, the use of the process of vibration and its impact, and assess its adaptability.


Product Detail

Product Tags

Application

Electromagnetic Vibration Testing Machine:

Three-axis series electromagnetic vibration table is an economic, but ultra-high cost performance of a sinusoidal vibration test equipment (function function cover fixed frequency vibration, linear sweep frequency vibration, log sweep frequency, frequency doubling, program, etc.), In the test chamber to simulate the electrical and electronic products in the transportation (ship, aircraft, vehicle, space vehicle vibration), storage, the use of the process of vibration and its impact, and assess its adaptability.

Three-axis series electromagnetic vibration table is widely used in the product design, research and development, manufacturing process of automobile parts, instruments, toys and other industries. It simulates the collision and vibration of products in transportation and use, and detects the actual working conditions and structural strength of products. Safety protection: over temperature, lack of phase, short circuit, over current, overload



The cooling method is air cooling.
1. The same equipment can realize X, Y, Z three-axis vibration, program control operation, accurate frequency, long-term operation without drift;
2. The amplitude can be adjusted stepless, and has the function of sweep frequency and fixed frequency to adapt to the test requirements of different industries;
3. The embedded amplitude prediction program adopts four-point synchronous excitation technology to make the vibration uniform and stable;
4. The anti-interference circuit is added to solve the interference problem of strong electromagnetic field to the control circuit, so as to ensure that the equipment shows non-magnetic and static characteristics;
5. The equipment is made of composite industrial materials and processed by precision processing, the appearance of the fuselage is beautiful and the operation control is humanized. At the same time, it is also equipped with special measurement and control module to improve the stability of the equipment.



Specification

Product Model

 KS-Z023 (three axis)

Frequency range (Hz)

 1 ~ 600 (1 ~ 5000 can be customized)

Product load (Kg)

 50 (customizable)

Vibration direction

 three axes (X+Y+Z)

Worktable size (mm)

 (W) 500× (D) 500 (customizable)

Table body size (mm)

 (W) 500× (D) 500× (H) 720

Control box size (mm)

 (W) 500× (D) 350× (H) 1080

Frequency accuracy

 0.1 Hz

Maximum acceleration

 20g

Control mode

 7 inch industrial touch screen

Amplitude (mm)

 0-5

Excitation mode

 electromagnetic type

Amplitude modulation mode

 electronic amplitude modulation

Vibration waveform

 sine wave

Set time range

 0-9999H/M/S minutes arbitrarily set

Cycle times

 0-9999 Set arbitrarily

Safety protection

 over temperature, lack of phase, short circuit, over current, overload

Cooling mode

 air cooling

_DSC3349   _DSC3350     _DSC3352

_DSC3354     _DSC3351
