Tensile Testing Machine

Short Description:

Computer tensile testing machine is mainly used for metal wire, metal foil, plastic film, wire and cable, adhesive, man-made board, wire and cable, waterproof materials and other industries of tensile, compression, bending, shearing, tearing, stripping, cycling and other ways of mechanical properties test. Widely used in factories and mining enterprises, quality supervision, aerospace, machinery manufacturing, wire and cable, rubber and plastic, textile, construction materials, household appliances and other industries of material inspection and analysis.


Product Detail

Product Tags

Application

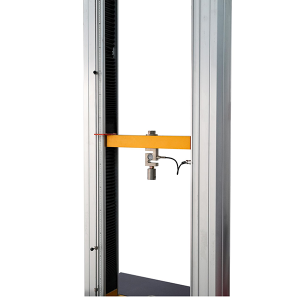

Tensile Testing Machine

Computer tensile testing machine is mainly used for metal wire, metal foil, plastic film, wire and cable, adhesive, man-made board, wire and cable, waterproof materials and other industries of tensile, compression, bending, shearing, tearing, stripping, cycling and other ways of mechanical properties test. Widely used in factories and mining enterprises, quality supervision, aerospace, machinery manufacturing, wire and cable, rubber and plastic, textile, construction materials, household appliances and other industries of material inspection and analysis.

The design of computer bending testing machine and auxiliary tools, with beautiful appearance, convenient operation, stable and reliable performance characteristics. The computer control system controls the servo motor rotation through the DC speed regulation system, and then slows down by the deceleration system, through the high-precision lead screw pair to drive the mobile beam up and down, to complete the tensile and other mechanical performance test of the sample, this series of products has no pollution, low noise, high efficiency, with a very wide speed regulation range and beam moving distance. With a wide variety of auxiliary tools, it has a very broad application prospect in the mechanical property test of metals and non-metals. The machine is suitable for quality supervision, teaching and scientific research, aerospace, iron and steel metallurgy, automobile, rubber and plastic, woven materials and other test fields.

Specification

Tensile Testing Machine

1, the maximum test force

 2000kg

2. Accuracy level

 0.5

3. Load measurement range

 0.2%-100% FS;

4. Allowable error limit of the test force indication value

 within ±1% of the indication value

5, test force value resolution

 1/±300000

6, deformation measurement range

 0.2% -- 100%FS

7. Error limit of deformation indication value

 within ±0.50% of indication value

8. Deformation resolution

 1/60000 of the maximum deformation

9. Displacement indication error limit

 within ±0.5% of the indication value

10, displacement resolution

 0.05µm

11, force control rate adjustment range

 0.01-10%FS/S

12, rate control accuracy

 within ±1% of the set value

13, deformation rate adjustment range

 0.02-5%FS /S

14, deformation rate control accuracy

 within ±1% of the set value,

15, displacement speed adjustment range

 0.5-500mm /min

16, displacement rate control accuracy

 rate ≥0.1≤50mm/min, set value within ±0.1%;

17, constant force, constant deformation, constant displacement control range

 0.5%--100%FS;

18, constant force, constant deformation, constant displacement control accuracy

 set value ≥10%FS, set value within ±0.1%; For setpoint <10%FS, within ±1% of the setpoint

19, effective travel

 600mm

20, the main body size (length x width x height)

 800mm*500mm*1100mm

21. Supporting fixtures

 customized according to customer products
