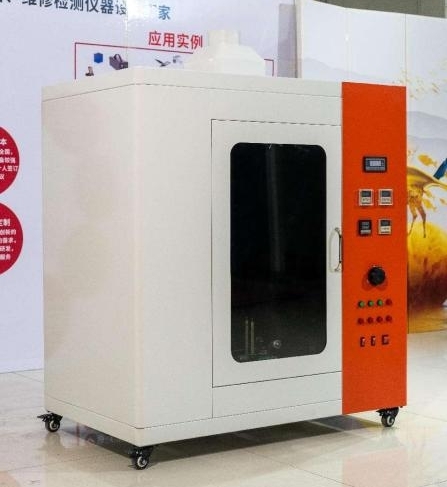

Hot Wire Ignition Test Apparatus
Overview
The Scorch Wire Tester is a device for evaluating the flammability and fire propagation characteristics of materials and finished products in the event of a fire incident. It simulates the ignition of parts in electrical equipment or solid insulating materials due to fault currents, overload resistance and other heat sources. The Scorch Wire Tester is applicable to electrical and electronic products, household appliances, and their materials, and can evaluate their risk of ignition when subjected to thermal stress for a short period of time.
The specifications or requirements
0℃-1000℃ Automatic DUT clamping trolley, can set the depth of the scorch wire probe and test time. Test time setting range 0s-99s, timing accuracy better than 0.1s with a standard fume cupboard.
Technical parameters
1.nickel - chrome burning wire diameter 4mm, made of standard size ring.
2.measuring the temperature of the burning wire with a nominal diameter of 0.5mm armoured fine wire thermocouple NiCr-Nia, ¢ 0.5mm, 100mm long.
3.thermocouple placed in the top of the scorch wire has been drilled holes, and to ensure good thermal contact, its thermal potential in line with the requirements of ZBY300.
4.the test device is designed to keep the burning wire in a horizontal plane, 1N weights hanging in the chassis inside, not easy to be corroded by the outside world and change the weight. It applies a force of 1N to the sample, the burning wire or the test sample in the horizontal direction of the relative movement of at least 7mm distance in the process has been to maintain this pressure value.

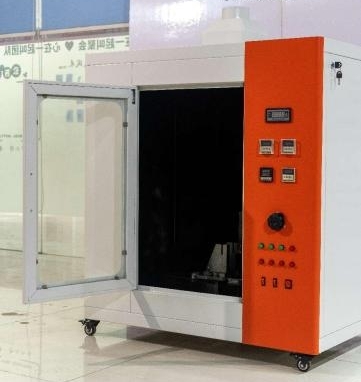

5.Open sample fixing frame.

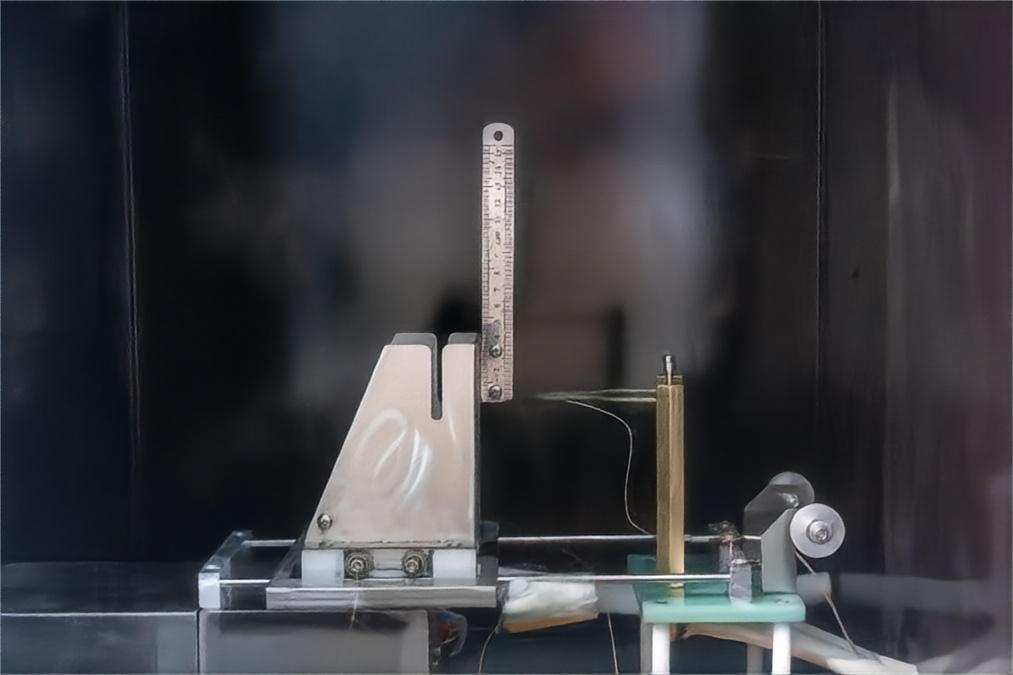

6.Adjustable flame measuring ruler.

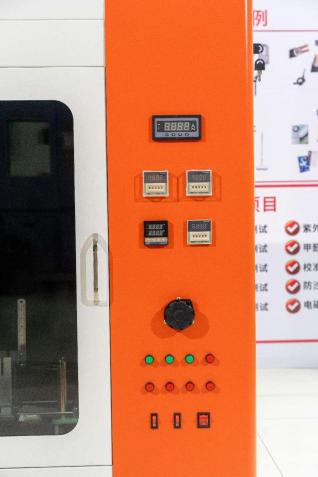

7.Temperature display instrument, display range (0~1000)℃, grade 0.5, can be adjusted with the temperature of the scorch wire.
8.Pulse timer, automatic test timing control, automatic control of sample testing time and retreat sample.
9.motor drive, automatic control of the sample trolley frame forward and backward.
10.burning wire current display table, range (0 ~ 160) A, level 1.0, built-in operation with current regulator.
11.security key, the key is not opened can not be operated.
12. the test process is fully automatic control, not affected by the operator's factors affect the results.
13.adjustable hot into the depth of 7mm.
14.burning on the sample of the application of time (Ta) 0 ~ 99 minutes and 99 seconds within the range of adjustable
15.the specimen moving speed: 10mm / s ~ 25mm / s
16.With glass observation window, you can see the test process.
17.With air extraction and lighting device, time, temperature digital display, easy to observe and record.
