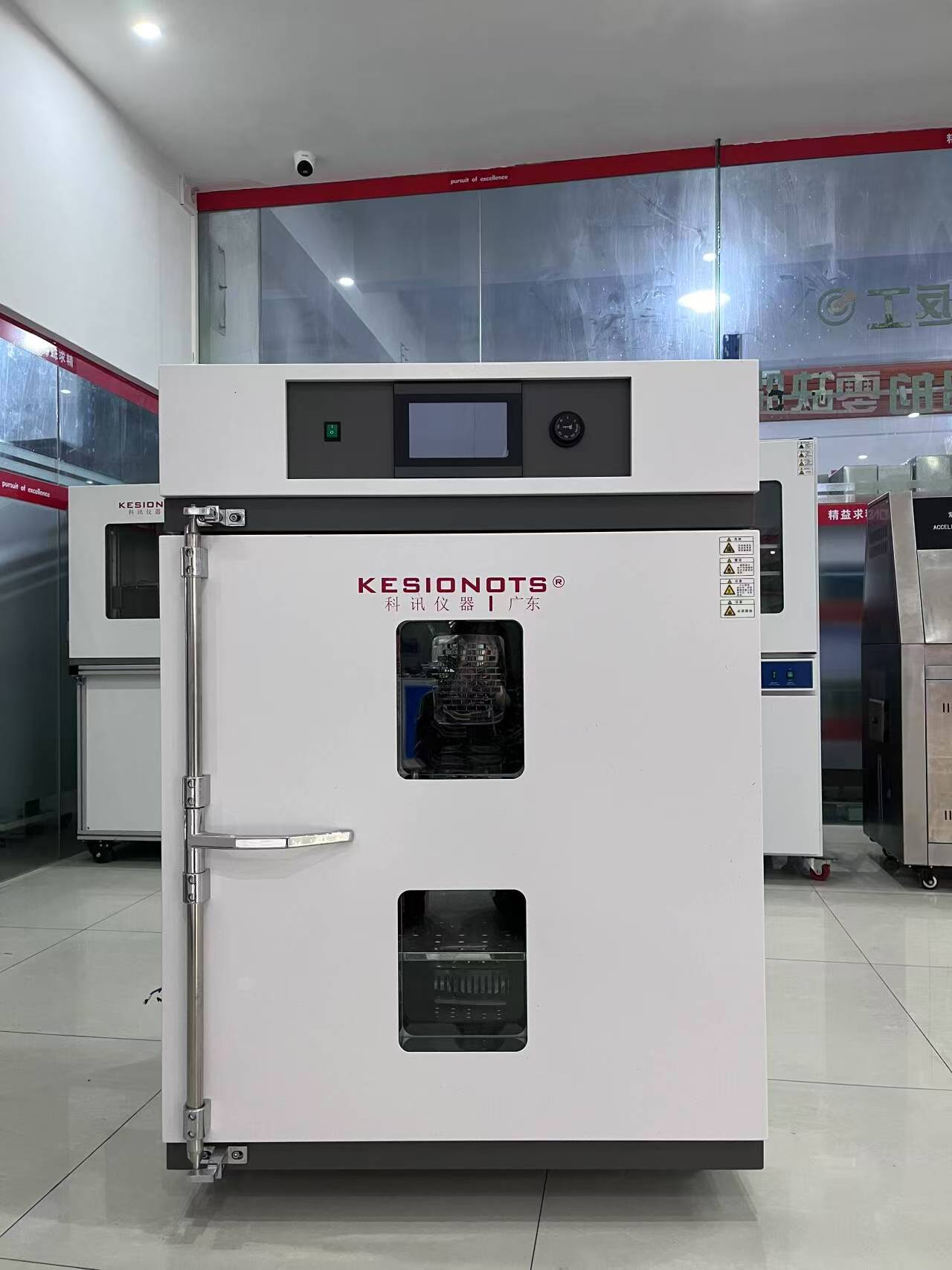

Precision Oven
Application
This oven is widely used for heating and curing, drying and dehydrating materials and products in the hardware, plastic, pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other industries. For example, raw materials, raw medicine, Chinese medicine tablets, infusion, powder, granules, punch, water pills, packaging bottles, pigments and dyes, dehydrated vegetables, dried melons and fruits, sausages, plastic resins, electrical components, baking paint, etc.
|
Model |
KS-HX600 |
KS-KX660 |
KS-HX690 |
KS-HX610 |
| Test chamber dimensions (cm) |
35*35*35 |
50*60*50 |
60*90*50 |
80*100,60 |
| Distribution accuracy | ±1% ( 1℃ ) At-room 100℃ | |||
| Control method | PLD automatic temperature calculation | |||
| Heating mode | Hot air circulation system | |||
| Temperature analysis | 0.1°C unit display | |||
| Temperature range | ± 5°C - 200°C (300°C or 500°C on request) | |||
| Manufacturing material | Internal SUS#304 stainless steel; external high grade baked enamel | |||
| The attachment | Double insulation protection and two shed panels | |||
| Time set | 0-9999 hours (minutes) Power failure memory type | |||
| Security guard | Independent over-temperature protection, safety overload switch | |||
| Supply voltage | 220V50HZ 380V50HZ | |||
Notes
In order to facilitate the box heat dissipation and maintenance, the use of this equipment, the environment must meet the following conditions:
1, in order to stably play the function and performance of the test chamber, the use of environmental temperature of 15 ~ 35 ℃, relative humidity is less than 85%.
2、Equipment should avoid direct sunlight.
3, keep well ventilated.
4, there should be no combustibles, explosives and high-temperature heat sources nearby.
5, should reduce the nearby dust.
This high and low temperature test chamber breaks through the design idea of the existing domestic products, with beautiful appearance, ideal assembly method, compact box structure, and extremely convenient installation and use.
The compact box structure is extremely convenient for installation and use. The shell adopts stainless steel salvin plate, the shell
High surface flatness, beautiful and generous. The inner chamber is made of SUS304 stainless steel plate with smooth and bright surface.
The rear of the studio is equipped with a blower duct, installed with a heater, refrigeration evaporator and other components, equipped with a pair of blower system, so that the duct of hot and cold air blown into the studio.
A pair of air blower system is installed to make the hot and cold air in the air duct blow into the working chamber to ensure the temperature requirement of the working chamber.
The refrigeration system of this test chamber is installed in the lower part of the box, and the refrigeration machine adopts French "Taikang" hermetic compressor, which is easy to install and has reliable performance and low voice.
Reliable performance, low voice.
The insulation material adopts ultra-fine glass wool, with good heat preservation effect. The test chamber is equipped with two sealing strips, good sealing performance.
