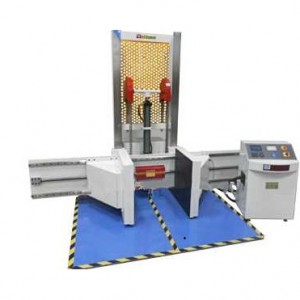

Package Clamping Force Test Machine

Short Description:

This test machine is used to simulate the impact of the clamping force of the two clamping plates on the packaging and the goods when loading and unloading the packaging parts, and to evaluate the strength of the packaging parts against clamping. It is suitable for packaging of kitchenware, household appliances, home appliances, toys, etc. It is especially suitable for testing the clamping strength of packaging parts as required by Sears SEARS.

Send email to us

Product Detail

Product Tags

Structure and working principle

1. Base plate: The base plate is made of assembled welded parts with high rigidity and strength, and the mounting surface is machined after ageing treatment; base plate test size: 2.0 m long x 2.0 m wide, with warning lines around and in the centre, and the middle line is also the reference line of the test piece, the centre of the test piece is on this line during the test, and people cannot stand on the base plate.

2. Drive beam: The servo motors of the left and right clamping arms in the drive beam drive the screw inwards at the same time (speed adjustable) to clamp the test piece to reach the set force, which is sensed by the built-in pressure sensor of the clamping arms to make it stop.

3. Servo system: When the clamping force of the two clamping arms of the drive crossbar has reached and stopped, the servo control station controls the servo to drive the crossbar up, stop and down through the chain, without people being on either side of the crossbar during the test.

4. Electrical control system.

5. The whole machine is controlled by PLC to achieve effective control of the movements of each work station.

6. The whole machine is equipped with a control cabinet to set the clamping force, clamping speed and lifting and stopping, and the manual or automatic test mode can be selected on the panel of the control cabinet. In the manual test, each action can be controlled manually, and in the automatic test, each action is realized to run continuously to ensure safe production and run according to the beat.

7. An emergency stop button is provided on the control cabinet panel.

8. To ensure the reliable operation of the machine, the main components are selected from imported brands.

Specification

Model	K-P28	Plywood sensor	Four
Operating voltage	AC 220V/50HZ	Capacity	2000Kg
Power Controller	LCD display for maximum rupture force, holding time, displacement	Sensor accuracy	1/20,000, metering accuracy 1%
Enhance the displacement	Lifting and lowering displacement 0-1200MM/lifting displacement accuracy in accordance with the scale	Maximum allowable height of the specimen	2.2 m (plus displacement height of 1.2 m, overall height of equipment approx. 2.8 m)
Clamping plate size	1.2×1.2m (W × H)	Clamp experiments Speed	5-50MM/MIN( Adjustable)
Strength units	Kgf / N / Lbf	Automatic shut down mode	Upper and lower limit setting stop
Transmission	Servo Motor	Protective devices	Earth leakage protection, travel limit device
