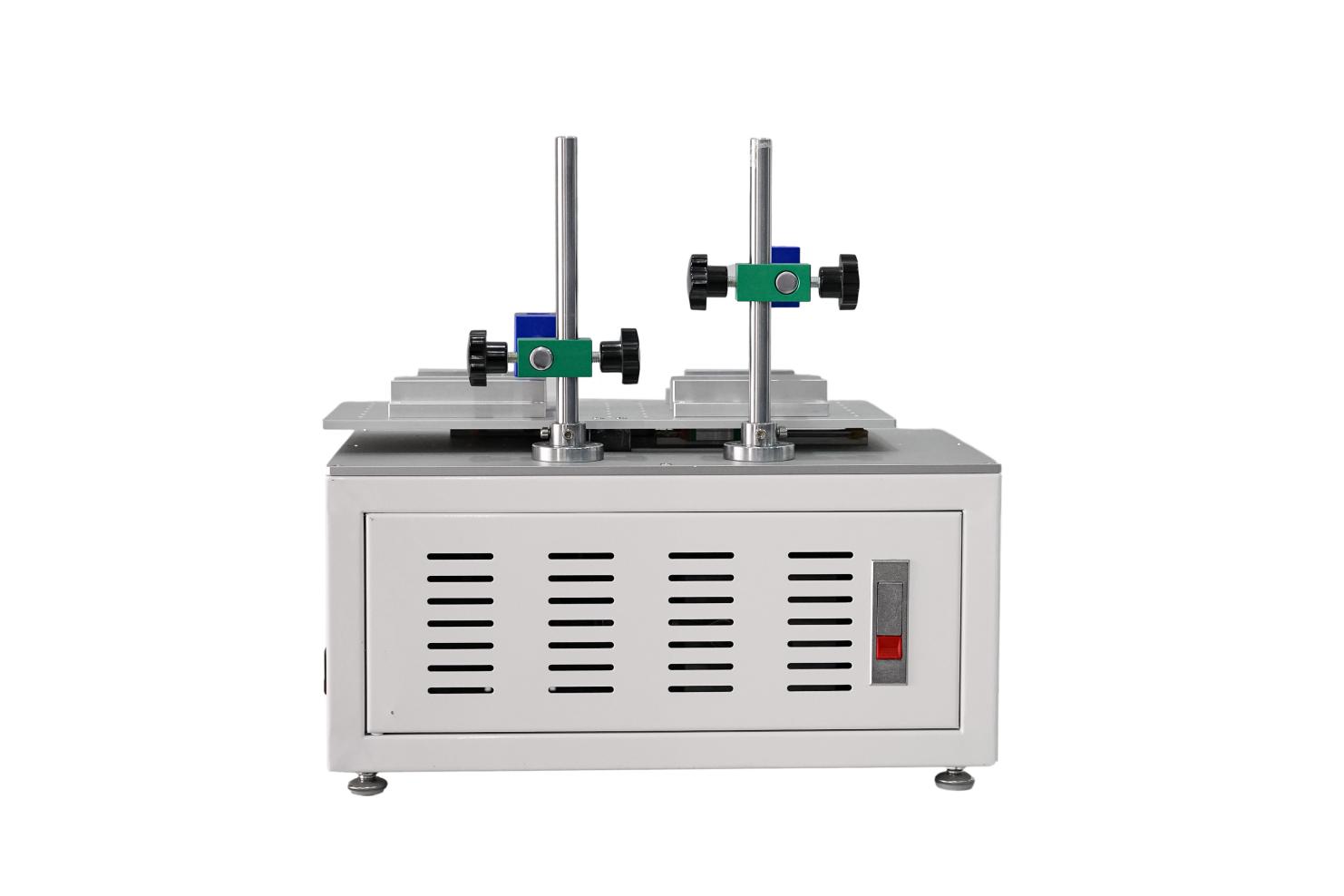

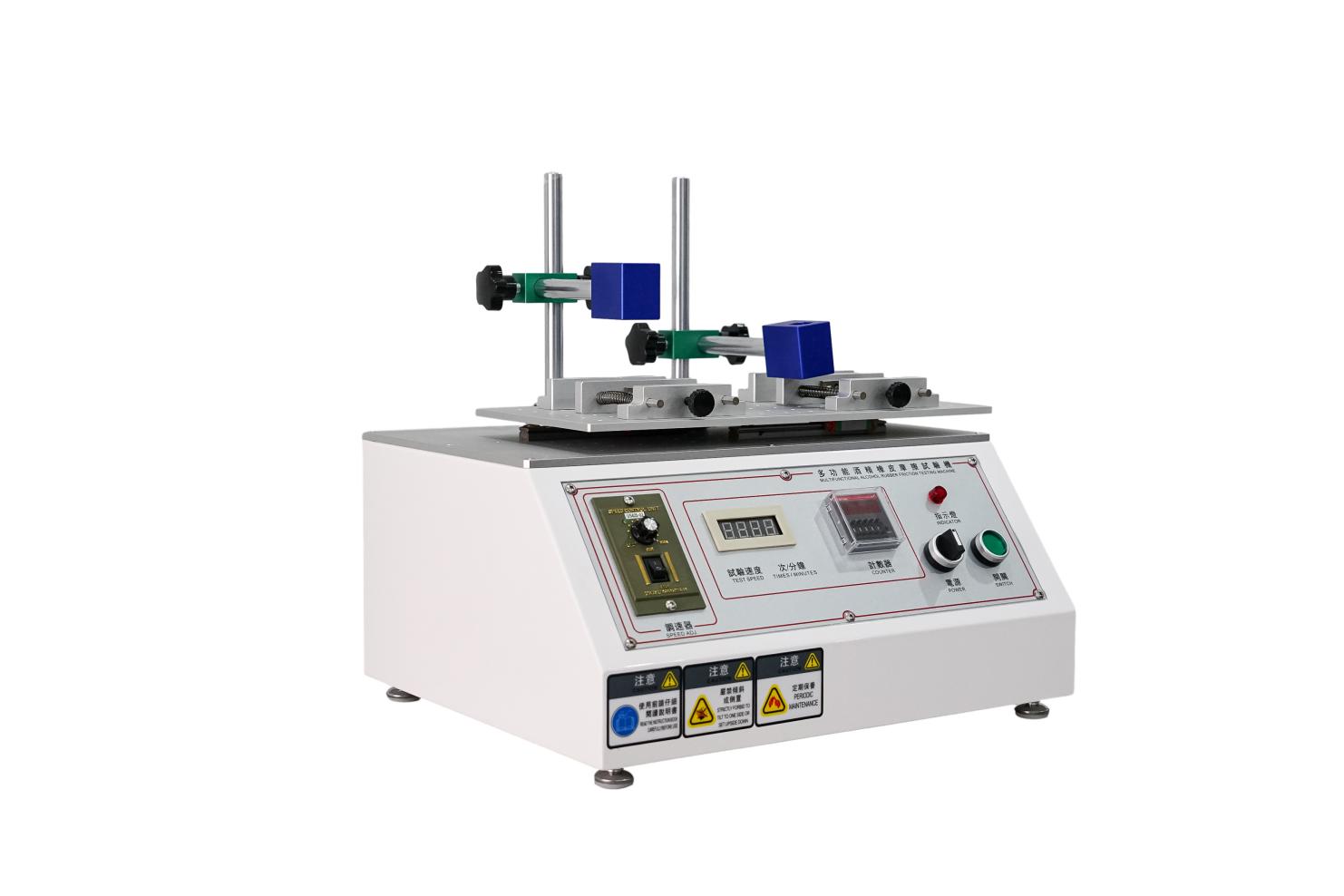

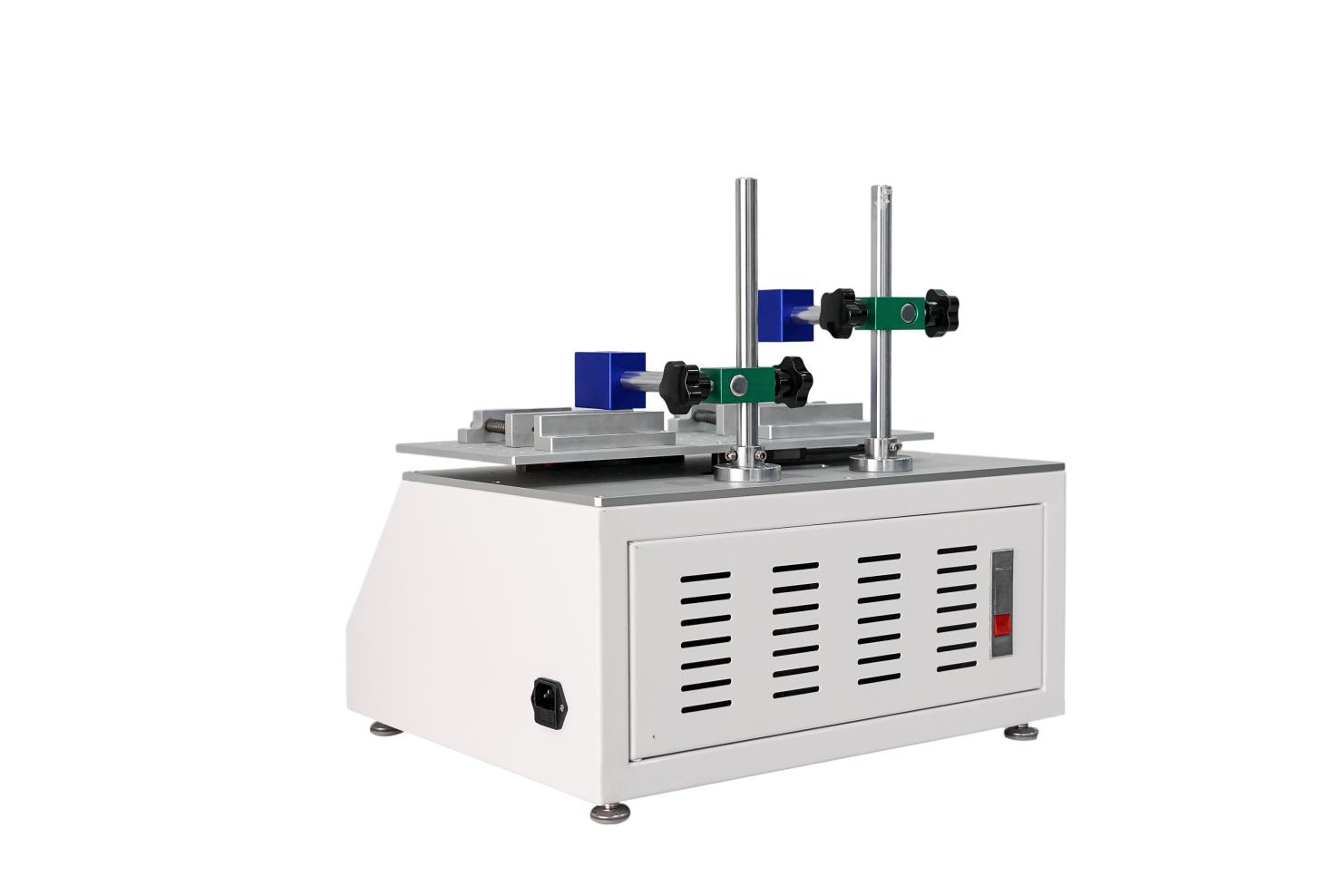

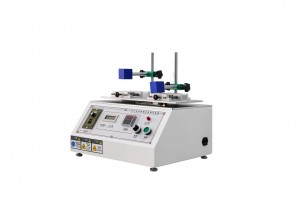

Multi-functional abrasion testing machine
Product Model
KS-DGNJJ
specificities
Multi-functional abrasion testing machine for TV remote control button screen printing, plastic, mobile phone shell, headset shell Division screen printing, battery screen printing, keyboard printing, wire screen printing, leather and other types of electronic products surface of the oil spray, screen printing and other printed matter for wear, assess the degree of wear resistance. This machine can be alcohol or other liquid media and cotton cloth friction test, eraser friction test, pencil hardness friction test three typical wear test. This machine is the abrasion hammer in a certain test load, the number of tests, the test stroke on the product back and forth reciprocating test.
Product parameters
1、Test station: two
2、Test load: 50~1000g
3、Test stroke: 10~60mm (manually adjustable)
4, test speed: 5 ~ 60 times / min (knob adjustment, LCD display)
5, test counter: 0 ~ 999999999 times (can be preset, LCD display)
6, load weight: 50, 100, 200, 300, 500g each two
7, friction media: standard cotton cloth, an eraser, Chinese 2B pencil two
8、Alcohol or other liquid rubbing tools: two
9、Eraser sassafras rubbing tools: two
10、Pencil erasers: two
11、Machine size（L×W×H）：500×450×600mm
12、Clip size：30*20*5CM
13、Working power supply: AC220V, 50HZ
Product features
1、The box body adopts electrostatic baking paint treatment, and the working table and friction jigs and so on adopt aluminium material surface sandblasting treatment, with strong corrosion resistance, tight structure, reasonable design, the whole machine is beautiful and elegant, running safely.
It has strong corrosion resistance, tight structure, reasonable design, beautiful and generous machine, safe, stable and accurate operation.
It is safe, stable and accurate in operation;
2、The number of tests can be preset, with power failure memory function, adjustable test speed and stroke, humanised design.
Speed, number of LCD display, convenient and intuitive;
3、With multi-function test, can be alcohol or other liquids and cotton cloth, eraser, pencil, steel needle
A variety of friction test.
Configuration list is as follows
1. test lifter: 60g ± 1 2pcs
2. steel wool testing head: 20 * 20mm 2pcs
3. steel wool testing head: 10 * 10mm 2pcs
4. Alcohol rubbing head: 2pcs
5. Rubber test head: 2pcs
6. weight: 500g ± 0.5 2pcs
7. Weight: 200g ± 0.5 2pcs
8. Weight: 100g ± 0.5 4pcs
9. weight: 50g ± 0.5 4pcs
10. Weight: 25g ± 0.5 2pcs
11. Eraser: 75215 2pcs
12. Open-end spanner: 1pc
13. Hexagonal spanner: 1 set
14. Brush: 1pc
Pictures are for reference only, subject to the real thing
