Multi-function push and pull testing machine
Application
|
Chip push diagram |
Solder joint push diagram |
Pulling test diagram |
 |
 |
 |

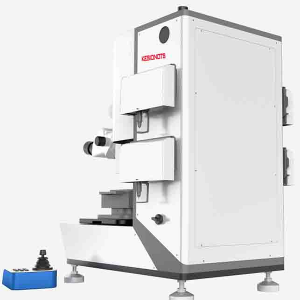

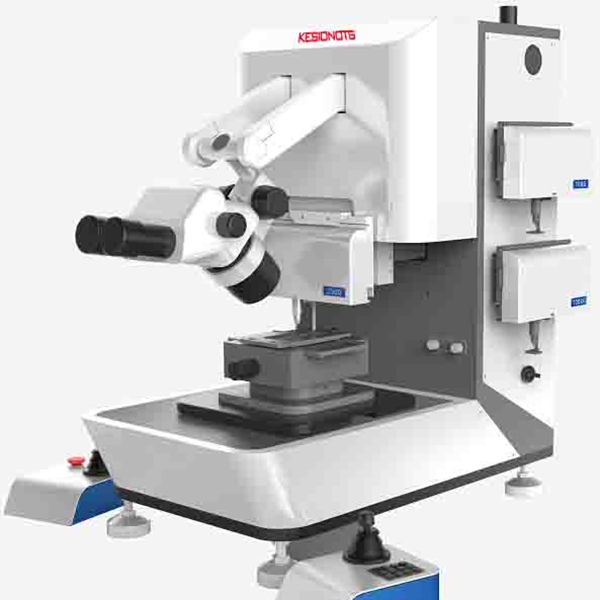

Automatic Pull Push Testing Machine：
KS-HT01A multi-function push and pull testing machine should be widely used in LED packaging testing, IC semiconductor packaging testing, TO packaging testing, IGBT power module packaging testing, optoelectronic components packaging testing, automotive field, aerospace field, military products testing, testing institutions and various types of colleges and universities testing and other applications.
◆ All sensors adopt high speed dynamic sensing and high speed data acquisition system to ensure the accuracy of the test data.
◆ Adopt the company's unique research and development of high resolution (24BitPlus ultra high resolution) data acquisition system.
◆ Movement core components are imported well-known manufacturers, to ensure long-term operation of the equipment.
◆ Adopt the company's unique safety limit and safety speed limit technology, so that the operation is easy.
◆ Adopt the company's unique intelligent lighting control and adjustment system to reduce the damage of light source to vision.
◆ Standard high-definition observation microscope, reduce visual fatigue.
◆ Double rocker four-way operation and humanized software configuration make the operation simple and convenient.
◆ Strong body design, suitable for 200KG force value test.
◆ Combined with the unique design of human body, make the use more comfortable.
◆ All-round protection measures for equipment to avoid damage to equipment due to personnel misoperation.
◆ Strong R & D strength, according to customer needs to provide customized products.
Specification
|
test range |
shear force sensor range BS5KG, DS100KG, comprehensive test accuracy ±0.1%; Tension sensor range WP2.5KG comprehensive test accuracy ±0.1%;The software has tensile test, shear test, pressure test, select the corresponding function of the test module can be easily realized. |
|
X table |
effective stroke 100mm; The resolution is 0.002mm |
|
Y table |
effective stroke 100mm; The resolution is 0.002mm |
|
Z table |
effective stroke 100mm; The resolution is 0.001mm |
|
Platform jig |
The platform can share various jig, and the jig can rotate 360 degrees |
|
appearance size |
length 570mm* width 400mm* height 670mm. |
|
power supply |
220V±5% |
|
air supply |
0.4-0.6MPA |
|
power |
300W(max) |
|
four-way movement platform, imported transmission parts, to ensure high speed, long and stable operation of the machine |
|
|
double rocker control machine four-way movement, simple and fast operation the machine comes with a computer, windows operating system, software operation is simple, |
|
|
the display screen can display 10 groups of test data and force value distribution curve; And can be real-time export, save data; |
|
