Computerised Single Column Tensile Tester

Short Description:

Computerized tensile testing machine is mainly used for mechanical property test of metal wire, metal foil, plastic film, wire and cable, adhesive, artificial board, wire and cable, waterproof material and other industries in the way of tensile, compression, bending, shearing, tearing, peeling, cycling and so on. Widely used in factories and mines, quality supervision, aerospace, machinery manufacturing, wire and cable, rubber and plastic, textile, construction and building materials, home appliances and other industries, material testing and analysis.


Product Detail

Product Tags

Application

Computerised Single Column Tensile Tester:

Computerized tensile testing machine is mainly used for mechanical property test of metal wire, metal foil, plastic film, wire and cable, adhesive, artificial board, wire and cable, waterproof material and other industries in the way of tensile, compression, bending, shearing, tearing, peeling, cycling and so on. Widely used in factories and mines, quality supervision, aerospace, machinery manufacturing, wire and cable, rubber and plastic, textile, construction and building materials, home appliances and other industries, material testing and analysis.

Computerized tensile testing machine host and auxiliary design, has a beautiful appearance, easy to operate, stable and reliable performance characteristics. The computer control system through the DC speed control system control servo motor rotation, and then through the deceleration system deceleration, through the high-precision screw drive moving beam up, down, complete the specimen tensile and other mechanical properties of the test, the series of products non-polluting, low-noise, high-efficiency, with a very wide range of speed control and beam moving distance. With a wide range of accessories, it has a very broad application prospect in the mechanical properties test of metal and non-metal. The machine is suitable for quality supervision, teaching and research, aerospace, iron and steel metallurgy, automobile, rubber and plastic, woven materials and other test fields.

Specification

Maximum test force

50kg (500N)

accuracy class

0.5 level

Load measurement range

0.2%—100%FS;

Allowable error limit of test force display value

within ±1% of the display value.

Resolution of test force

1/±300000

Deformation measurement range

0.2%-100%FS

Deformation error limit

Within ±0.50% of display value

power of resolution of deformation

1/60,000 of maximum deformation

Displacement Error Limit

Within ±0.5% of display value

displacement resolution

0.05µm

Force Control Rate Adjustment Range

0.01-10%FS/S

Rate control accuracy

Within ±1% of set value

Deformation rate adjustment range

0.02—5%FS/S

Accuracy of deformation rate control

Within ±1% of set value

Displacement speed adjustment range

0.5—500mm/min

Displacement rate control accuracy

Within ±0.1% of the set value for rates ≥0.1≤50mm/min;

Constant force, constant deformation, constant displacement control accuracy

Within ±0.1% of the set value when the set value is ≥10%FS; within ±1% of the set value when the set value is <10%FS

Constant force, constant deformation, constant displacement control range

0.5%--100%FS

Power supply 220V, power 1KW.

Repeated stretching accuracy

±1%

Effective stretching of spatial distance

600mm (including fixture)

Matching fixtures

tensile strength, seam strength and elongation at break fixtures

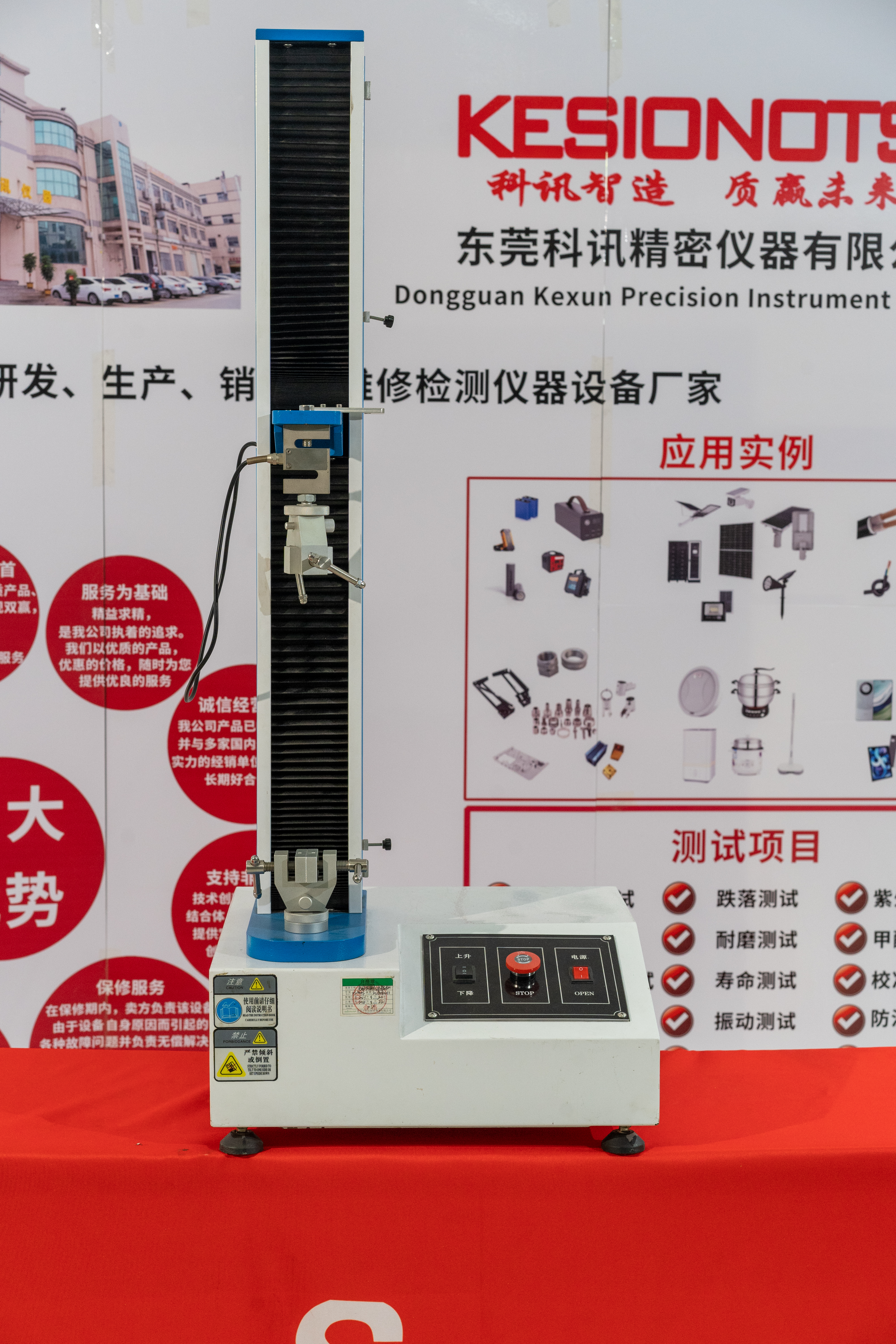

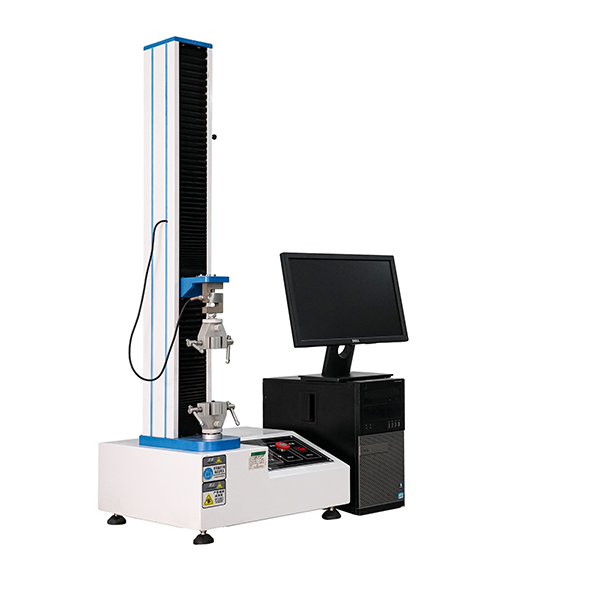

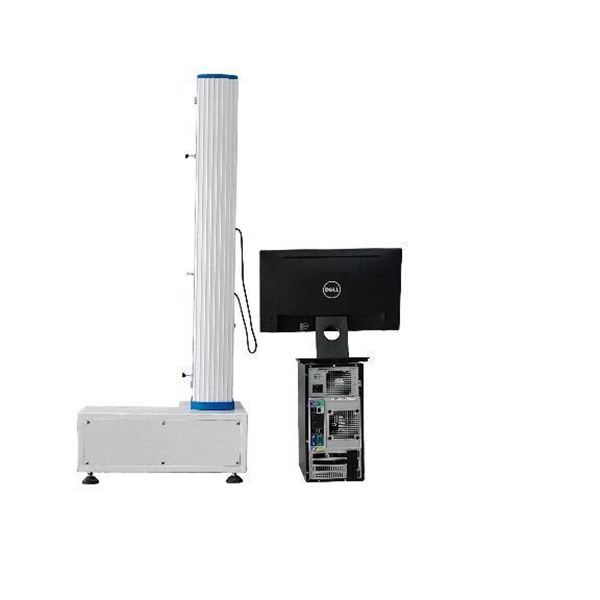

_DSC3231         Single column tensile testing machine        _DSC3236

_DSC3242      _DSC3233
