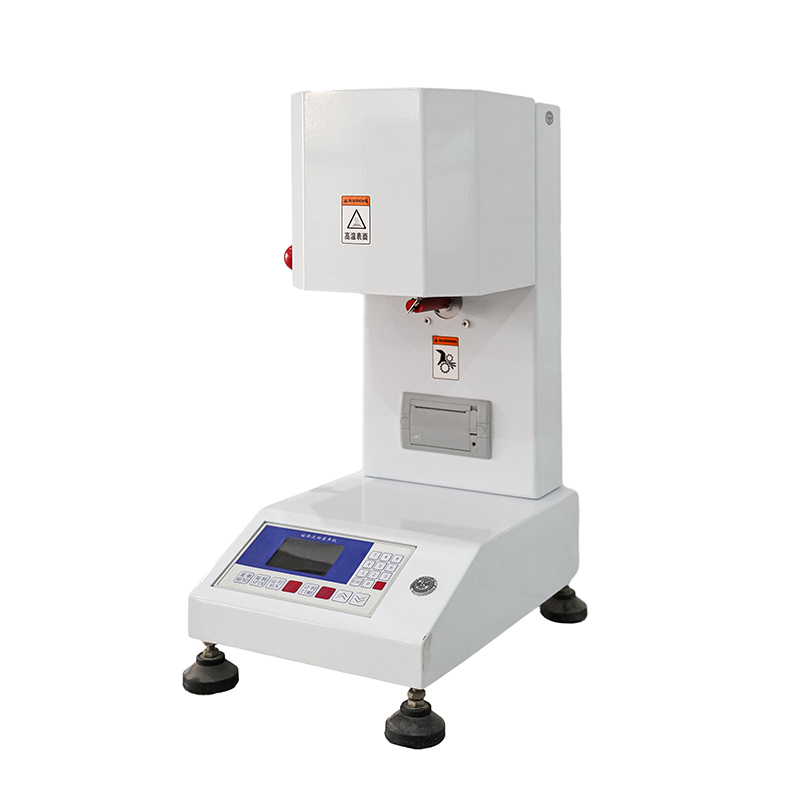

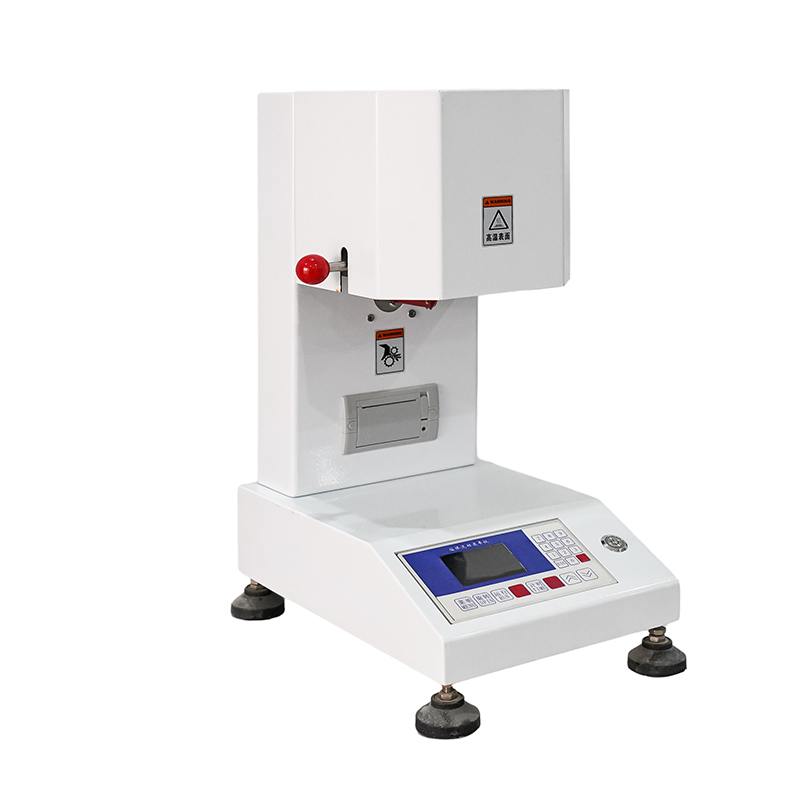

Melting Index Tester

Short Description:

This model adopts a new generation of artificial intelligence instrument temperature control and double time relay output control, instrument thermostat cycle is short, the amount of overshooting is very small, the temperature control part of the “burnt” silicon controlled module, so that the temperature control accuracy and product stability can be effectively guaranteed. In order to facilitate the use of the user, this type of instrument can be realised manually, time-controlled two test methods for cutting material (cutting interval and cutting time can be set arbitrarily).


Product Detail

Product Tags

Application

Melt fluid testing machine

The product intelligence, automation degree is very high, the machine adopts high-performance, high-precision control instrumentation, the use of PID regulation for thermostatic control, with high sampling accuracy, fast control speed characteristics. Wide range of application, fast heating speed, high precision, stable and reliable performance, is the plastic raw materials and plastic products production enterprises, as well as quality inspection and supervision and inspection institutes and colleges and universities ideal test and teaching instruments.

This instrument is used to determine the melt flow rate of various polymers in the viscous flow state, it is suitable for both the higher melting temperature of polycarbonate, polyarylsulfone, fluorine plastics and so on. It is also suitable for polyethylene, polystyrene, resin and other plastics with low melting temperature test, the instrument conforms to the provisions of GB/3682-2000; ASTM-D1238, D3364; JIS-K7210; ISO1133 standards.

Melt flow rate refers to the thermoplastic at a certain temperature and load, the melt every 10 minutes through the standard mouth mould mass or volume. This instrument is only applicable to the determination of melt flow rate (MFR) by mass method, and its value can characterise the viscous flow characteristics of thermoplastics in the molten state.

Product Features

ISO 1133 melt index testing machine

1. Fast heating speed, very small overshooting amount

2. High precision of constant temperature

3. After packing, it can quickly restore the constant temperature state.

4. Calibration and correction of test parameters are convenient

5. Manual and automatic material cutting test methods can be used

6. Colourful liquid crystal display in English and Chinese. Equipped with a printer, the test results will be automatically printed out.

sd1

Technical Parameters

Melt flow rate testing machine

Temperature range: RT-400°C

Temperature fluctuation: ±0.2°C

Temperature uniformity: ±1℃

Temperature display resolution: 0.1℃

Time display resolution: 0.1S

Barrel diameter: Φ2.095±0.005mm

Outlet length: 8.000±0.025mm

Loading cylinder diameter: Φ9.550±0.025mm

Accuracy of weight: ±0.5 per cent

Output mode: micro-automatic printout

Cutting mode: hand-automatic cutting as a whole

Test load: total 8 levels, 8 sets of weights

Power supply voltage: AC220V±10% 50HZ

Accessories: a tool box, a roll of gauze, a mouth mould, a pressure material lever a mouth mould through-hole device. A funnel. Clamp. A set of weights.
