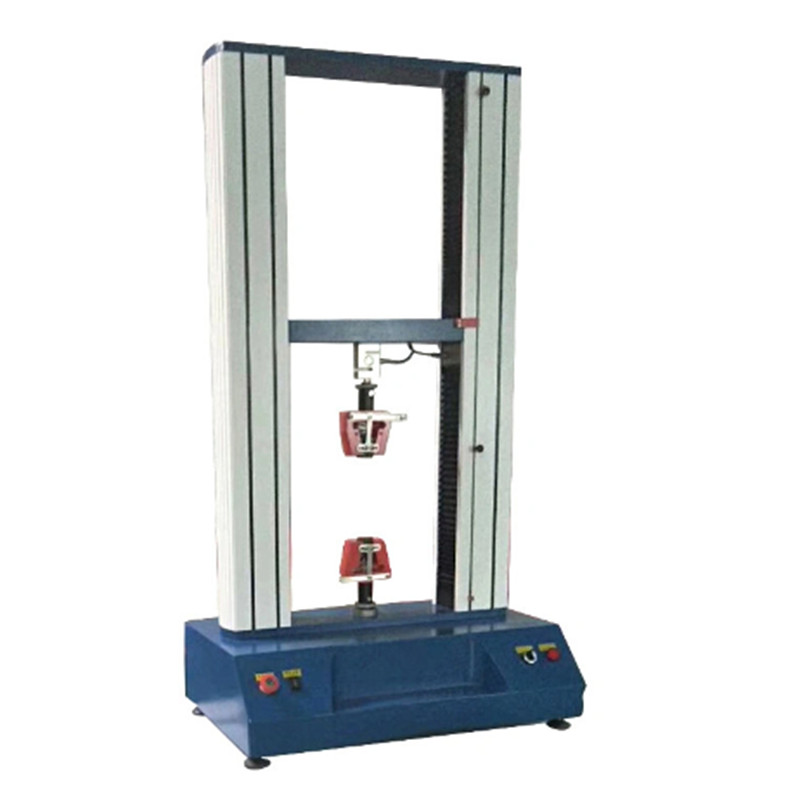

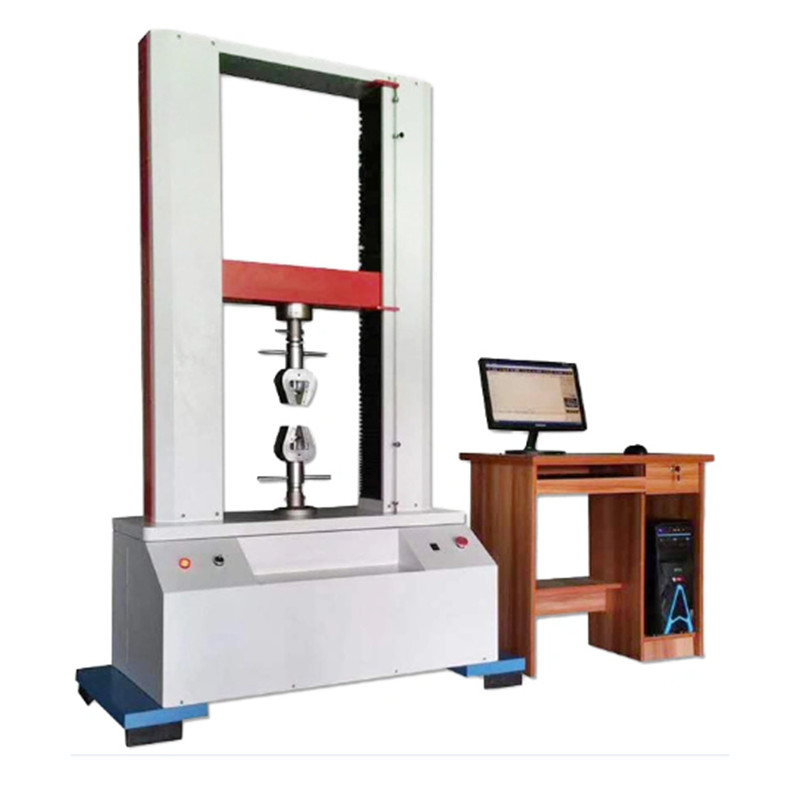

Material Compression Testing Machine Electronic Tensile Pressure Testing Machine

Short Description:

Universal material tensile compression testing machine is a general test equipment for material mechanics testing, mainly used for various metal materials

And composite materials and non-metallic materials at room temperature or high and low temperature environment of stretching, compression, bending, shear, load protection, fatigue. Test and analysis of physical and mechanical properties of fatigue, creep endurance and so on.


Product Detail

Product Tags

Tensile and compression testing machines:

Application:Mainly applicable to the testing of metal and non-metal materials, Such as rubber, plastic, wire and cable, optical fiber and cable, safety belt, safety belt, leather belt composite materials, plastic profiles, waterproof coils, steel pipes, copper, profiles, spring steel, bearing steel, stainless steel (and other high-hardness steel), castings, steel plates, steel belts, non-ferrous metal wire has high temperature environment stretching, compression, bending, shearing, peeling, tearing, two points extension Extension (need to be equipped with an extension meter) and other tests. Mainly applicable to the testing of metal and non-metal materials, Such as rubber, plastic, wire and cable, optical fiber and cable, safety belt, safety belt, leather belt composite materials, plastic profiles, waterproof coils, steel pipes, copper, profiles, spring steel, bearing steel, stainless steel (and other high-hardness steel), castings, steel plates, steel belts, non-ferrous metal wire has high temperature environment stretching, compression, bending, shearing, peeling, tearing, two points extension Extension (need to be equipped with an extension meter) and other tests.

Item Specification
The load cell 0-200kg
Test schedule 600mm
Power accutacy ±0.1%
Displacement accuracy ±0.1%mm
Large deformation meter accuracy ±0.1%mm(Optional)
Precision metal extensometer ±0.1%mm(Optional)
Power unit Kg, Kn, N, Lb(Switchable)
Test speed 0.01-500MM/min(Set free)
Control mode Computer program control
Print function Print out the power of changing the course of testing products and detailed data graphs.
Test width So do not limit
Stop mode Overload shutdown, specimen damage stop, emergency stop button, the upper and lower limit stop, force time setting down
Machine size 500*400*1100mm
