Drop Test Machine KS-DC03
Product Description
The machine applies to toys, electronics, electrical appliances, communications, IT, furniture,gifts, ceramics, packaging ...... Fall test, finished products or components, such as nude down(Without packaging drop), package drops (Finished products and packaging at the same time falling) to assess product handling, suffering from falling impact strength of damaged or fall.
Standard
JIS-C 0044;IEC 60068-2-32;GB4757.5-84;JIS Z0202-87; ISO2248-1972(E);
Product Features
The key components are Japanese native and reliable performance, a variety of fall flooring available to meet different standards.
Test Method
Using pneumatic structures, will be tested on a dedicated fixture (adjustable stroke) clip, and press the drop key cylinder release, samples for free fall experiments. Drop height can be adjusted up and down,with altitude scale, we can see that height of the specimen.
KS-DC03A

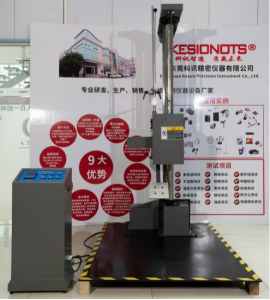

KS-DC03B
Features
| Model | KS-DC02A | KS-DC02B |
| Maximum weight of test piece | 2kg ±100g | 2kg ±100g |
| Drop height: | 300~1500mm (adjustable) | 300~2000mm (adjustable) |
| Drop height scale stainless steel, | minimum indication 1mm | |
| Clamping method | Vacuum adsorption type, can be dropped from any part | |
| Falling method | Multiple angles (diamond, corner, surface) | Multiple angles |
| Use air pressure | 1MPa | |
| Machine size | 700×900×1800mm | 1700×1200×2835mm |
| Weight | 100kg | 750kg |
| Power supply | 1 ∮ , AC220V， ф3A | AC 380V , 50Hz |
| Drop floor medium | cement board, acrylic board, stainless steel (choose one from three) | |
| Height setting indicator | digital display | |
| Height display accuracy | ≤2% of the set value | |
| Test space | 1000×800×1000mm | |
| Drop angle error | ≤50 | |
