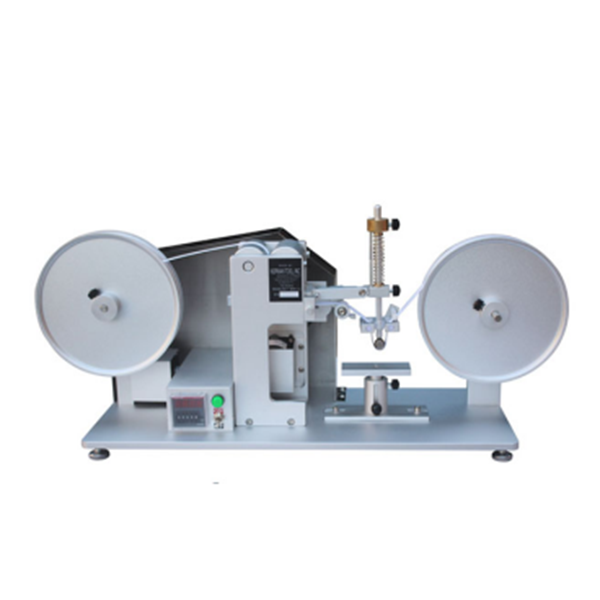

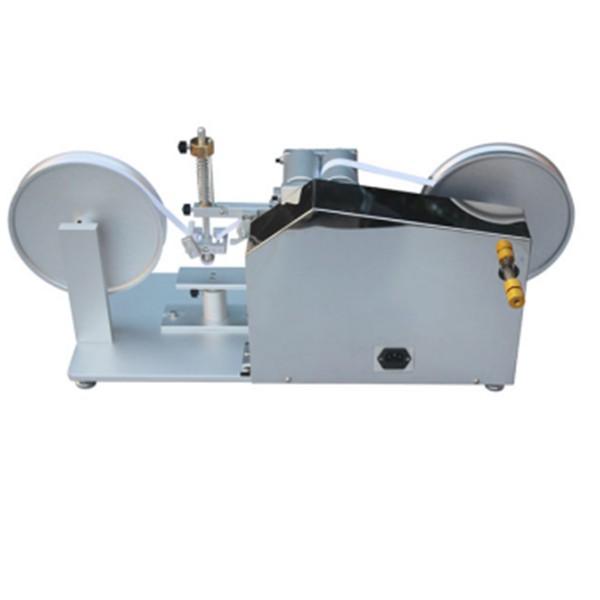

KS-RCA01 Paper tape abrasion resistance testing machine
KX-3021 Safety Shoes Impact Testing Machine
The safety shoe impact resistance testing machine is specially used to test the impact resistance of safety shoes. Its structure includes: power switch, control panel, safety bolt, height ruler, cross arm, upper limit sensor, impact head, impact sensor, and secondary impact prevention device. , clamps, speedometer fixed rods, etc. The principle uses an electromagnet to control the rise and fall of the impact head, and after impacting the toe-protecting steel head of the safety shoes at a certain height, check for damage or deformation of the toe-protecting steel head, thereby characterizing the safety shoes ( head) impact resistance
Application:
The safety shoe impact testing machine is specially used to test the impact resistance of safety shoe steel toes. It is equipped with an impact hammer with a mass of 20±0.2kg. It is suitable for free falling from a selected height under vertical guidance to provide impact energy. There should be a mechanical device to catch the impact hammer at the first impact so that the specimen only suffers one impact.
Standard:
BS-953, 1870, EN-344, ANSI-Z41, CSA-Z195, ISO8782, GB/T20991-2007, LD50
Principle:
That is, the steel head of the safety shoe is placed under the punching blade of the machine, and the weight is dropped freely at a certain height to check the degree of subsidence. The weight of the weight of the testing machine during the test is 23±0.2kg. Fix the pattern on the device and adjust the weight drop height as required. Then let the weight drop freely to conduct the impact test. After the test, take out the plasticine and measure its size. If it is ≥15mm, it is qualified. This machine is developed in accordance with EN, ANSI, BS, and CSA specifications. It uses 100J or 200J of kinetic energy to conduct impact tests on the steel heads of safety shoes, and then checks the degree of subsidence to understand the safety quality. EN, ANSI, BS, and CSA specifications are omitted. There are slight differences, please be sure to specify the specifications when ordering
|
Model |
KX-3021 |
|
According to standards |
BS-953, 1870, EN-344, ANSI-Z41, CSA-Z195, ISO8782 |
|
Drop weight |
(EN) 20±0.2KG, (BS, ANSI) 22.7KG |
|
Drop height |
(EN)0-1100MM |
|
Impact capacity |
(EN) 200 Joules, (BS, ANSI) 100±2 Joules |
|
Impact blade |
(EN) 3±0.1mm (R) (ANSI) 25.4mm |
|
Horse power |
DC1/4HP |
|
Volume |
Host 58.5×69.5×181.5cm |
|
Weight |
227kg |
|
Power source |
3∮, AC 220V |
KS-B02 Luggage roller impact testing machine
The luggage roller impact testing machine is suitable for testing the roller impact of luggage during transportation. The final results of the test luggage after tumbling impact will be used as the basis for quality improvement. Test the tumbling impact of suitcases and other packaging boxes during transportation. The boxes tumble and impact in the tube. After the specified number of revolutions is completed, the damage of the boxes is detected as a basis for quality control.
Standard: American SAMSONITE Standard
Product Description:
This machine is designed to test the tumbling and impact of ammunition boxes, travel boxes and other packaging boxes during the conveying process. The boxes are tumbled and impacted inside the barrel, and after the specified number of revolutions, the damage to the boxes is checked and used as a basis for quality improvement.
| Model | KS-B02 |
|
Number of roller revolutions |
2r.p.m |
|
Number of times set |
0～999999 （ Automatic shutdown ） |
|
Baffle |
2 sets of 90 degrees |
|
Impact body |
Conical metal, diameter: 380mm |
|
Auxiliary load |
10/20/30/50kg |
|
Machine size |
230*160*260cm(W*D*H) |
|
Power supply |
AC220V, 50 or 60HZ |
KS-Y10 Baby Stroller Pram Dynamic Durability Test Instrument
troller dynamic durability testing machine. This machine is equipped with an electric eye safety device to prevent the stroller from losing control and damaging the testing machine due to breakage of the handle and rubber band. This machine is suitable for testing the dynamic durability of the bottom wheels and body of push strollers when they are moving under simulated road conditions.
Standards: ASTM-F833, CNS6263-12, BIS-1996
Product description: This machine is suitable for dynamic durability testing of the bottom wheels and body of a stroller when it is moving under simulated road conditions.
Precautions
1. During the test, test personnel should observe on site to prevent falling parts from jamming the transmission parts and causing damage to the experimental machine. If any abnormality occurs during the test, the machine should be stopped immediately for inspection.
2. When the machine is not in use, please turn off the main power supply.
3. The instrument must be kept clean, especially on the test bench. It must not be damaged by impact or contaminated.
4. Please refill the bearing seat with lubricating oil regularly to ensure normal bearing operation.
5. After each test, please turn off all switches and power on the machine.
| Bearing load | MAX 50 lbs. |
| Test speed | 1.4m/sec |
| Number of impacts: | 30 times/min |
| Test timing | 0～99h LCD digital display setting control |
| Conveyor belt Conveyor belt | made of canvas rubber |
| Up and down distance adjustment | MAX 300mm |
| Impact height | MAX 12mm |
| Effective width MAX | 700mm |
| Body size (approx.) | 1950*1250*1870mm |
| Body weight (approx.) | 1050kg |
Compliant with standards: CNS
Product description: This machine is suitable for testing the durability of push strollers when they are lifted and pressed when simulating obstacles. It is manufactured in accordance with CNS testing. The test method is to place the model baby in the carriage. When lifting, the rear wheels of the carriage are 150mm away from the ground. When pressing down, the front wheels of the carriage are 150mm off the ground. The test is performed at 15 ± 1 times per minute, and the test is repeated 3,000 times. Visually check whether the platform is damaged, and it can automatically stop after reaching the set number of times. Lift and press down to activate the pneumatic cylinder transmission.
| Can lift and press down | 50kg |
| Stroller handle fixed, | movable and replaceable |
| Lift and press function, | front and rear height adjustable |
| Adjustment distance of handle connecting rod (approx.) |
300mm |
| Automatic counter | 99999 times, electronic |
| Machine size | 1650*1100*1900mm |
| Power supply | AC 220V 50Hz |
| Body weight (approx.) | 850kg |
