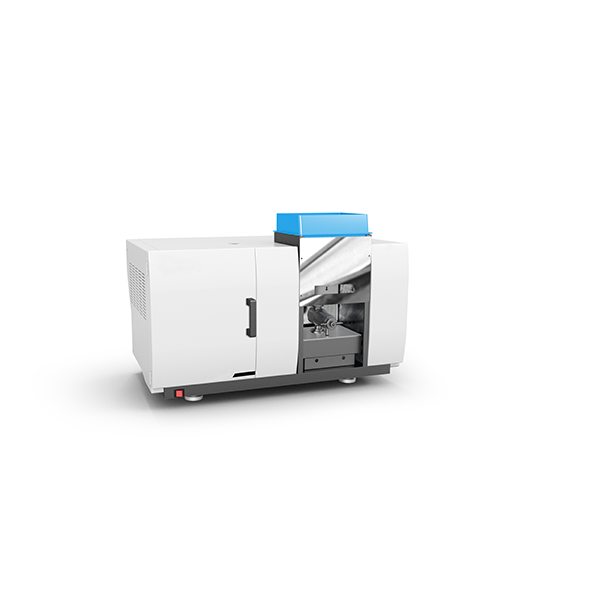

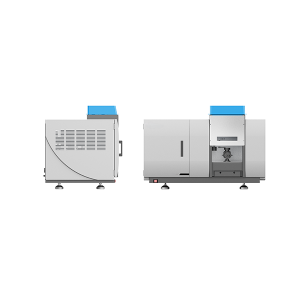

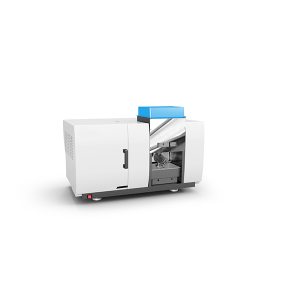

Flame Atomic Absorption Spectrometer

Host
1、Total reflection achromatic optical system。
The use of convex lenses as the focusing optical element of the instrument effectively solves the problem of color difference caused by different element focal points and improves optical efficiency。
2、C-T monochromator。
Using a 1800 L/mm grating with a flashing wavelength of 230nm as the spectroscopic system。
3、Eight Element Light Tower。
Eight lamp holder design, eight independent lamp power supplies, one lamp working, can achieve preheating of seven lamps, saving time for lamp replacement and preheating。
4、Fully automated design。
Except for the main power switch, all functions of the instrument are controlled by。
5、USB 3.0 communication method。
The industry is the first to adopt the USB3.0 communication interface, improving communication speed and compatibility with the latest computer systems。
6、Background correction system。
Equipped with two background correction modes: deuterium lamp and self absorption, with a background signal of 1A and a background correction capability of over 40 times。
Flame system
1、Pure titanium atomization chamber。
Effectively prevents corrosion and has a longer service life。
2、Efficient glass atomizer。
Adopting a dedicated high-efficiency glass atomizer with impact ball, the atomization efficiency is higher and maintenance is convenient。
3、High precision mass flow controller for acetylene flow regulation。
The mass flow controller accurately controls the acetylene flow rate, with an accuracy of up to 1ml/min, and dynamically monitors the flow rate。
4、More safety protection measures make instruments safer and more reliable。
1) Acetylene leakage protection
2) Acetylene pressure monitoring
3) Air pressure monitoring
4) Monitoring of combustion head status
5) Flame status monitoring
6）Water seal status monitoring
