KS-1220 Horizontal Insertion and Withdrawal Force Tester

Short Description:

Model number KS-1220

Horizontal Insertion and Withdrawal Force Tester

Technical programme

1、Advanced factory, leading technology

2、Reliability and applicability

3、Environmental protection and energy saving

4、Humanization and automated system network management

5、Timely and perfect after-sales service system with long-term guarantee.

Send email to us

Product Detail

Product Tags

Parametric

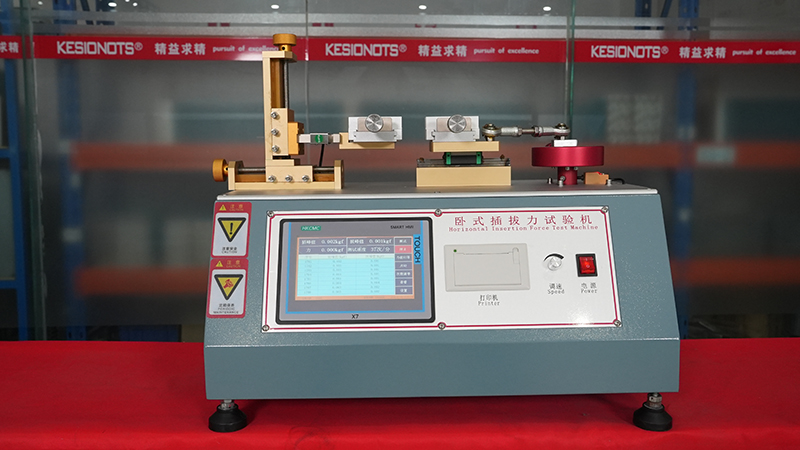

Horizontal Insertion and Withdrawal Force Tester

一、Product Model	KS-1220
二、Product Description
Touch screen horizontal insertion and extraction force testing machine for a variety of connector compression, tensile damage test, connector single hole insertion and removal test, connector insertion and removal test, connector insertion and removal test, connector insertion and removal life test, connector single pin and plastic retention force test, can display the insertion and removal of continuous changes in the value of the force and the peak, insertion and removal of the force test machine with the number of settings, insertion and removal of the force test machine speed stroke adjustable, insertion and removal of the force test machine speed display value, and can be Printing test results.
1. Frequency range	0~999999
2. Transmission mode	Rotating Eccentric Wheel

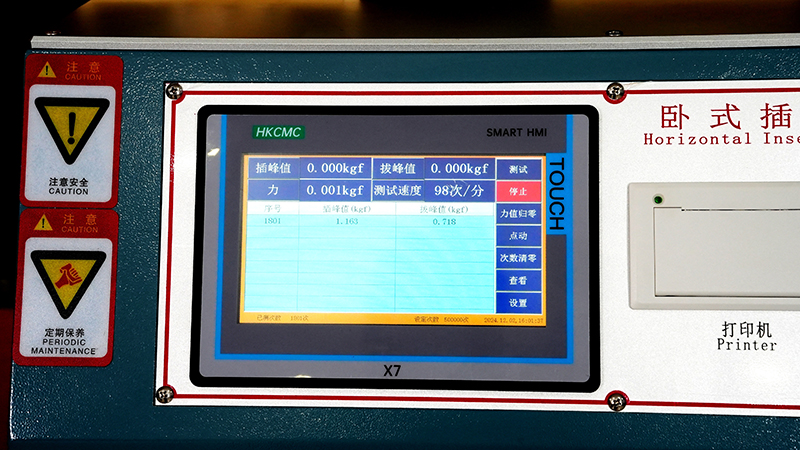

3. Display mode	Large LCD real-time display
4. Insertion and extraction force range	0~50kg
5.Minimum insertion and extraction force resolution	0.01kg
6. Stroke adjustment example	0 ~ 60MM
7.Testing speed	5 ~ 60 times/min (digital display)
8.Three kinds of unit conversion	KG, LB, N
9. Adopting software to correct the load value, simple and convenient operation.
10. Insertion and extraction force can be saved in 10 groups at intervals.
11. Volume: 550mm470mm450 mm
12. Power supply 220V50HZ
三、Structural principles

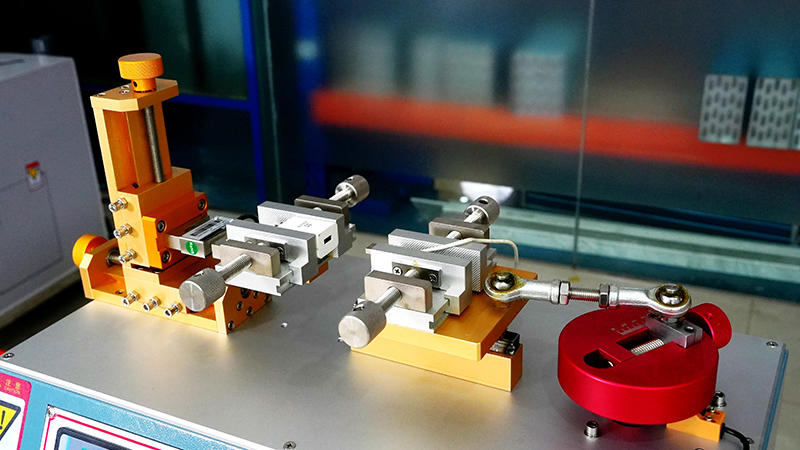

1、The insertion and extraction force tester is powered by a speed-regulated motor and utilizes the eccentric wheel rotation to produce reciprocating motion, which improves the testing speed and saves time. 2、The fixture adopts horizontal clamping structure, and the height of the fixture can be adjusted up and down. 3、The function of presetting the number of tests can be used to observe the damage of the product at any time when doing the product life experiment. 4, high-precision digital display force value display function, you can always display the insertion force or pull out the force size, accurate, convenient and fast. 5、Special products need special fixture.
