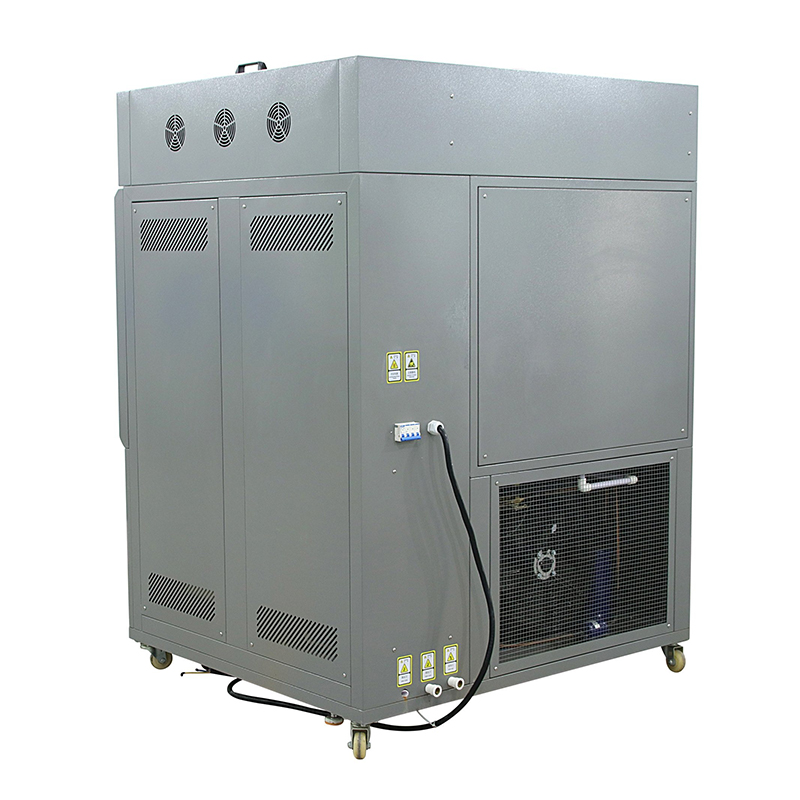

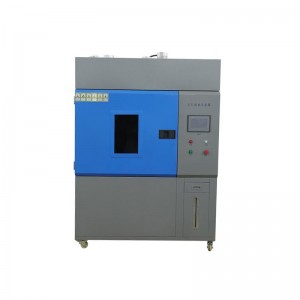

Xenon lamp aging test chamber

Short Description:

Xenon arc lamps simulate the full sunlight spectrum to reproduce the destructive light waves present in different environments, and can provide appropriate environmental simulation and accelerated testing for scientific research, product development and quality control.

Through the material specimens exposed to xenon arc lamp light and thermal radiation for aging test, to evaluate the high temperature light source under the action of certain materials, light resistance, weathering performance. Mainly used in automotive, coatings, rubber, plastic, pigments, adhesives, fabrics, aerospace, ships and boats, electronics industry, packaging industry and so on.


Product Detail

Product Tags

Application

Model

KS-XD500

Working chamber dimensions (mm)

500×500×600

Outer chamber dimensions (mm)

850×1200×1850

Temperature range

10℃80℃

Humidity range

65%98%R.H

Chalkboard temperature

63°C, 100°C (deviation ±3°C)

Temperature uniformity

≤±2.0℃

Humidity fluctuation

+2%-3% R.H

 Glass window filters

Borosilicate glass

Xenon light supply

Imported air-cooled xenon arc light sources

Xenon lamp power

1.8KW

Total number of tubes

1 piece

Rainfall time

1 to 9999 minutes, continuous rainfall is adjusted.

Rainfall period

1 to 240 minutes with adjustable interval ( discontinuous ) rainfall.

Nozzle orifice size

Ф0.8mm (return water with ultra-fine filter to prevent nozzle blockage)

Rainfall water pressure

0.120.15kpa

Spraying cycle (spraying time/no spraying time)

18min/102min/12min/48min

Water spray pressure

0.120.15Mpa

Heating power

2.5KW

Humidifying power

2KW

Light cycle

Continuous adjustable time 0 to 999 hours.

Spectral wavelength

295nm800nm

Irradiance range

100W800W/

Adjustable speed of rotation of the load table (infinitely adjustable)

About Us

Dongguan Kexun Precision Instruments Co., Ltd. Belongs to Taiwan OTS Industrial Co., Ltd. in Dongguan, Dongguan, Chashan, put into production in 2000, with a plant area of 10,000 square meters, is a company with many years of research and development of environmental testing machines, design, production of manufacturers, with strong experience and cooperation with well-known domestic enterprises, the products are exported to many countries and regions around the world!

Kexun Instrument Company is a collection of research and development, design, production, sales, technology, service in one of the environmental reliability test equipment, high-tech manufacturers.
