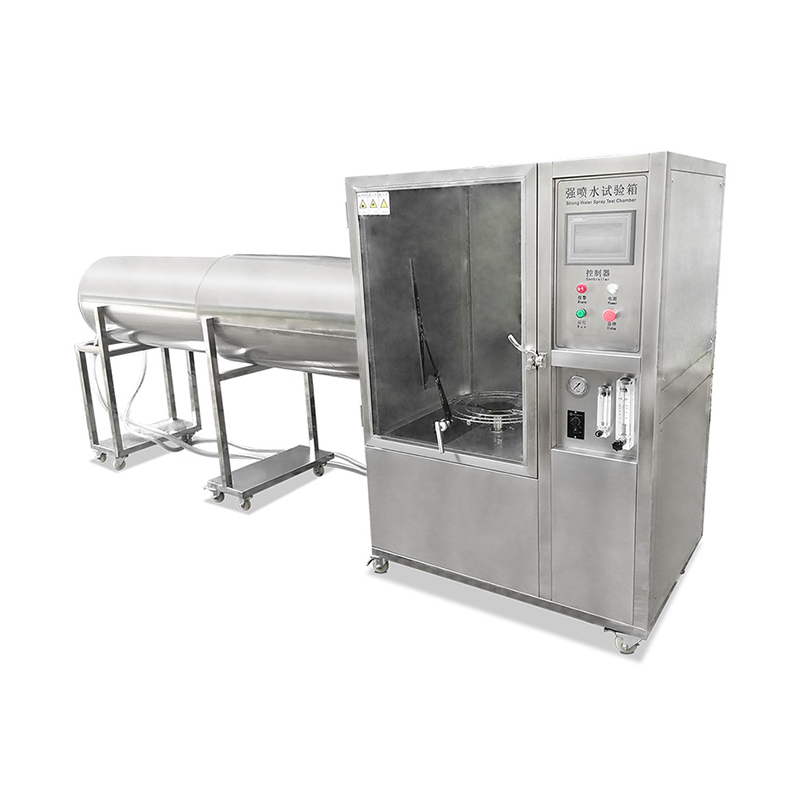

IP56 Rain Test Chamber
Equipment Use
The waterproof test chamber is suitable for testing whether electrical products, shells and seals can ensure good performance of equipment and components in rainy environments. This product adopts scientific design, which enables the device to realistically simulate various environments such as dripping water, spraying water, splashing water, and water spraying. With the adoption of a comprehensive control system and frequency conversion technology, the rotation angle of the rainfall test rack, the swing angle of the water spray swing rod and the swing frequency of the water spray volume can be automatically adjusted.
Standard basis
GB4208-2008, GB2423.38, IPX5, IPX6 equivalent
Structural principle
Auto parts rain test chamber
The basic design principle of this equipment: There is a water tank at the bottom, which pumps water through the stainless steel water pump inside the right control box and pressurizes it, and then sends it to the nozzle of the side water spray pipe device. The nozzle sprays water to the sample above the turntable in a constant direction. Scattered into the inside of the water tank, thereby forming a water circulation system. The water pump outlet is designed with flow meters, pressure gauges, solenoid valves and other control components. The inner box is equipped with a waterproof turntable whose speed is controlled on the panel.
Technical Parameters
|
Inner box size |
800*800*800 mm |
|
outer box size |
Approximately: 1100*1500*1700mm |
|
High-pressure water spray pipe: |
Installed on the left side, made of stainless steel welded and connected to the box. A bracket is installed at the front and rear of the water spray pipe. The height of the bracket is adjustable. |
|
Spray system |
Composed of water pump, water pressure gauge and fixed nozzle bracket |
|
Install 2 sprinkler heads |
Including one IP6 sprinkler head and one IP5 sprinkler head. |
|
Pipe diameter |
Six points Liansu PVC pipe |
|
Inner diameter of nozzle hole |
Inner diameter of nozzle hole |
|
Water spray pressure |
80-150kpa (adjusted according to flow rate) |
|
Turntable |
φ300mm, the touch screen can display the turntable speed |
|
Water spray flow |
IP5 (level) 12.5±0.625 (L/min), IP6 (level) 100±5 (L/min) |
|
Turntable |
φ300mm, the touch screen can display the turntable speed |
|
Water spray duration |
3, 10, 30, 9999min (adjustable) |
|
Running time control |
1~9999min (adjustable) |
|
Water circulation system |
Ensure the recycling of water sources |
|
Water spray pressure gauge |
Which can display the water spray pressure |
|
Control system |
Kesionots" touch screen control system. |
|
Test outdoor box |
Stainless steel plate is used as the waterproof wall, and stainless steel square tube is used as the bracket. |
Material
|
Nozzle |
304 stainless steel pipe |
|
Water tank |
304 stainless steel |
|
Frame material |
201 stainless steel square tube, sand surface (professional wire drawing) |
|
Electrical control accessories |
Selected from well-known brands such as Chint, Taiwan Shiyan, and Japan Fuji. |
Structural materials
|
Nozzle |
304 stainless steel pipe |
|
Nozzle |
SUS304 stainless steel plate |
|
Countertop |
SUS304 stainless steel |
|
IP56 internal bracket |
Stainless steel square tube, PVC pipe |
|
Electrical control accessories |
Selected from internationally renowned brands such as Chint, Schneider, Delixi, and Fuji. |
|
High-power water pump 2.2KW and multiple solenoid valves control the waterway. |
|
|
The IP56 control system operates together, and the IP level can be optionally tested. |
|
|
Power |
3.5KW |
|
Voltage required for equipment operation |
380V |
