High Temperature High Pressure Jet Test Machine

Short Description:

The main purpose of this equipment is for vehicles such as buses, buses, lamps, motorbikes and their components. Under the cleaning process conditions of high pressure/steam jet cleaning, the physical and other relevant properties of the product are tested. After the test, the performance of the product is judged to be up to the requirements through calibration, so that the product can be used for design, improvement, calibration and factory inspection.


Product Detail

Product Tags

Product Description

 Model

KS-LY-IPX56.6K.9K

Inner box dimensions 1500×1500×1500mm(W×H×D)
Outer box dimensions 2000 x 1700 x 2100 ( Subject to actual size )

 9K parameters

Spray water temperature 80℃±5
Turntable diameter 500mm
 Turntable load 50KG
Angle of water jet ring 0°,30°,60°,90°(4)
 Number of holes 4
Flow rate 14-16L/min
Spray pressure 8000-10000kpa(81.5-101.9kg/c㎡)
Spray water temperature 80±5°C ( Hot water jet test, high pressure hot jet)
Sample table speed 5±1r.p.m
Spray distance 10-15CM
Connection lines High pressure stainless steel hydraulic hoses
Number of water spray holes 4

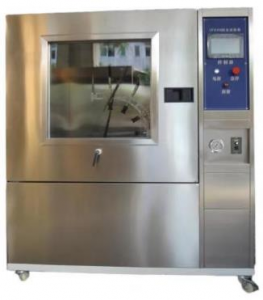

11 (1)

Features

6K parameters

Spray hole internal diameter φ6.3mm,IP6K(Grade) φ6.3mm,IP5(Grade) φ12.5mm,IP6(Grade)
Ip6k spray pressure 1000kpa equals 10kg (regulated by flow rate)
IP56 spray pressure 80-150kpa
Spray flow rate IP6K (class) 75±5(L/min) (High pressure electronic Flow-meter high pressure high temperature)

IP5 (class) 12.5±0.625L/MIN (mechanical Flow-meter)

IP6 (class) 100±5(L/min) (Mechanical Flow-meter)

Spray duration 3、10、30、9999min
Run time control 1M~9999min
Spray pipe High pressure resistant hydraulic pipe

Operating environment

Ambient temperature RT+10℃~+40℃
Ambient Humidity ≤85%
Power supply power supply capacity AC380( ±10%)V/50HZ

Three phase five-wire protection ground resistance less than 4Ω.

The user is required to provide an air or power switch of the appropriate capacity for the equipment at the installation site and this switch must be separate and dedicated to the equipment.

Outer case material SUS304# stainless steel
Power and voltage 308V
Protection system Leakage, short circuit, water shortage, motor overheating protection.
11 (2)
