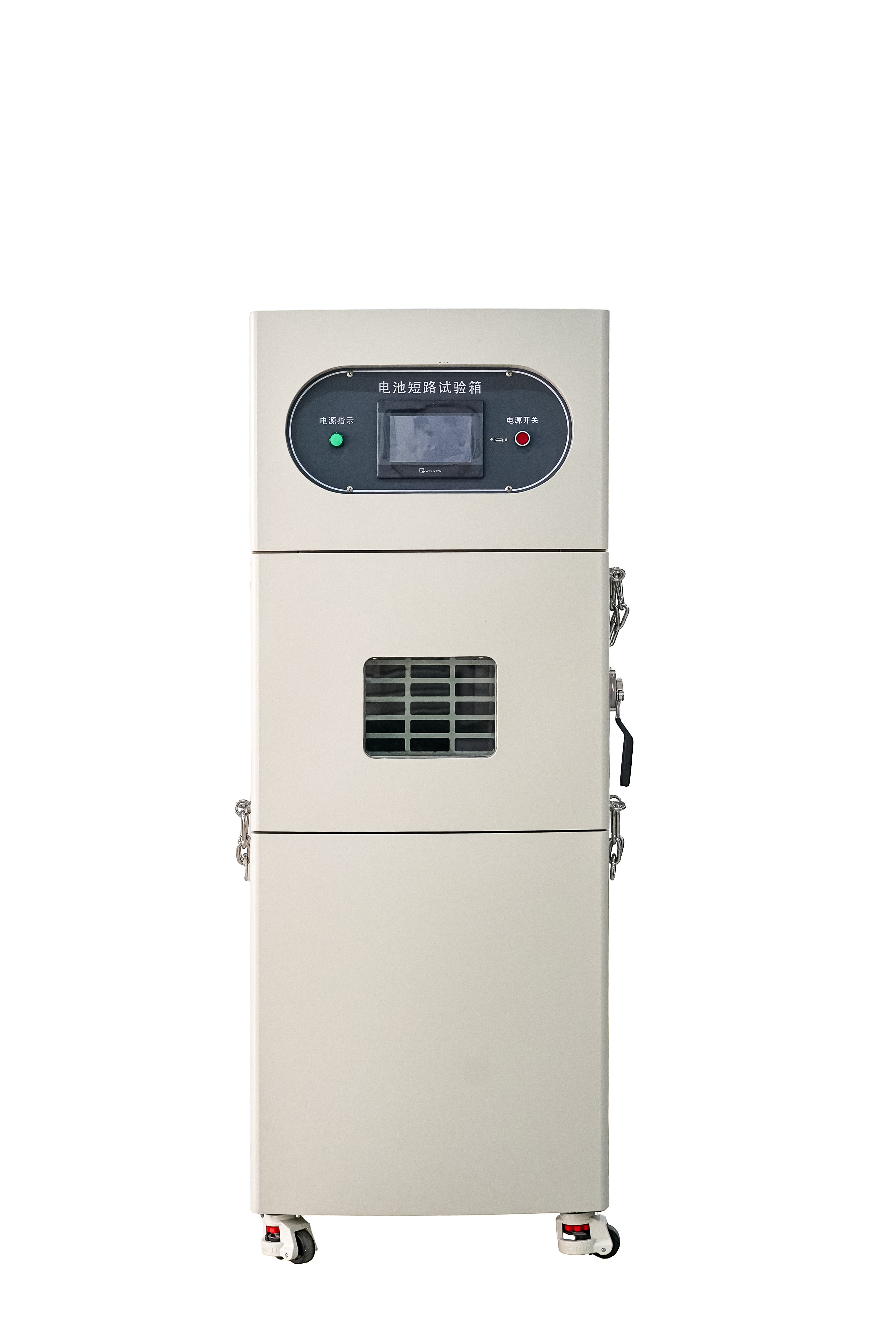

High quality temperature controlled battery short circuit tester

Short Description:

The temperature-controlled battery short-circuit tester integrates various battery short-circuit test standard requirements and is designed to meet the internal resistance requirements of the short-circuit device according to the standard. This allows for obtaining the maximum short-circuit current required for the test. Additionally, the design of the short-circuit device’s wiring must be able to withstand the impact of high current. Therefore, we have chosen an industrial-grade DC magnetic contactor, all-copper terminals, and internal copper plate conduit. The wide range of copper plates effectively improves the thermal effect, making the high-current short-circuit device safer. This ensures the accuracy of the test data while reducing the loss of test equipment.


Product Detail

Product Tags

Application

Battery short circuit testing machine

The short-circuit tester adopts PLC automatic control to simulate the external short circuit of the battery. It meets the requirements of UL1642, UN38.3, IEC62133, GB/、GB/T18287, GB/T 31241-2014, and other standards. The tester records changes in battery voltage, current, and surface temperature. The entire circuit (including circuit breaker, wires, and connecting devices) must have a resistance of 80±20mΩ, and each circuit is capable of withstanding short-circuit currents with a peak value of 1000A. The short circuit stop mode can be selected: 1. short circuit time; 2. battery surface temperature.

Auxiliary Structure

Inner box size 500(W)×500(D)×600(H)mm
control method PLC touch screen control + wireless remote control short circuit action command
temperature range RT+10°C~85°C (adjustable)
Temperature fluctuation ±0.5℃
temperature deviation ±2℃
operating voltage AC 220V 50Hz~ 60Hz
impulse voltage AC  1kv/1.2-50μs   1min
Maximum short-circuit current 1000A (Maximum current can be specified to order)
DC Response Time ≤5μs
Device internal resistance 80mΩ±20mΩ
movement time Suction time/release time ≯30ms
Motion Characteristics Cold Suction Voltage ≯66%Us
Cold Release Voltage ≯30%Us, ≮5%Us
Inner box material Stainless steel plate 1.2mm thick with Teflon, corrosion-resistant and flame-retardant.
Outer case material A3 cold plate lacquered 1.5 mm thick

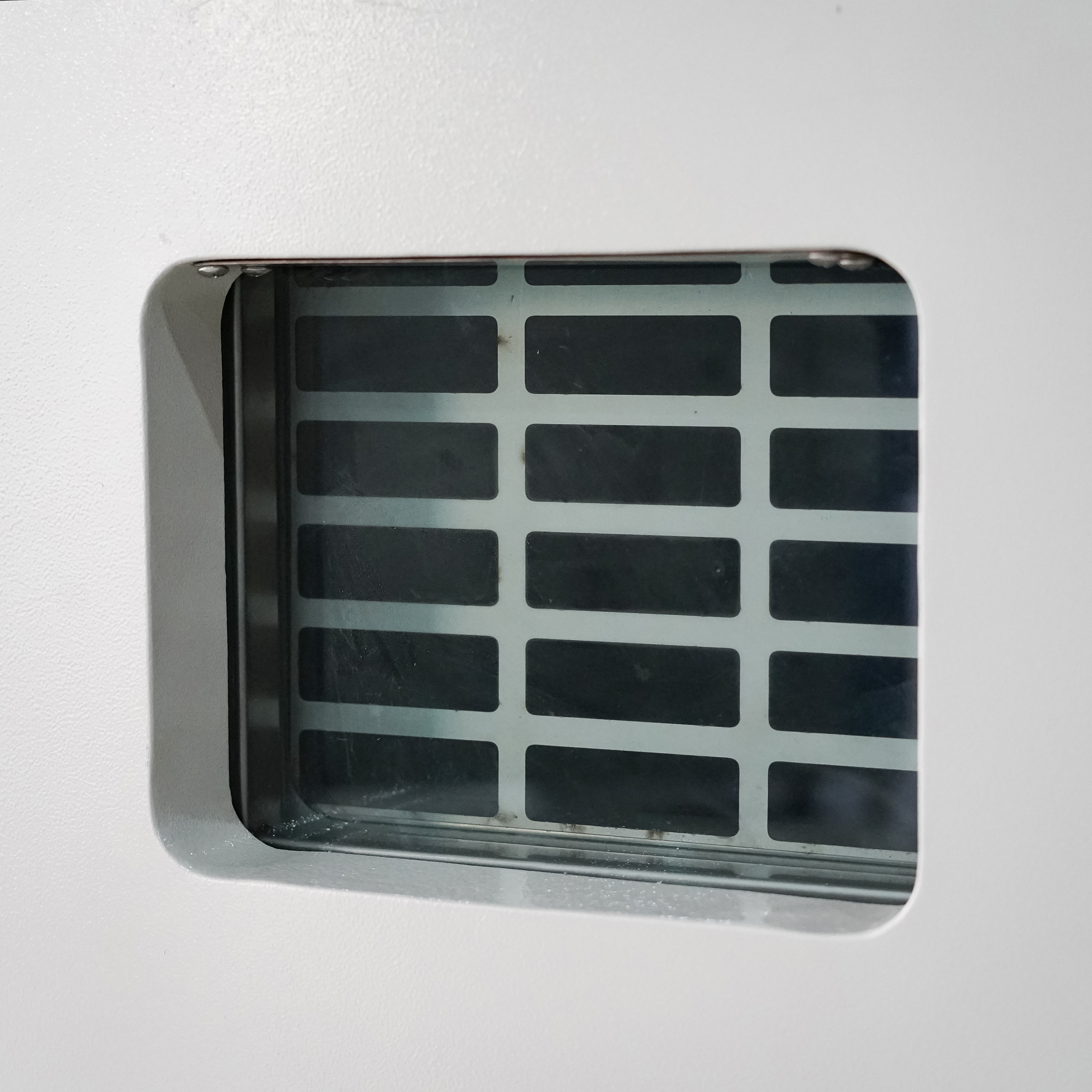

viewing window 250x200mm two-layer vacuum toughened glass viewing window with explosion-proof grill
drain The rear side of the box is equipped with a pressure relief device and exhaust air vents

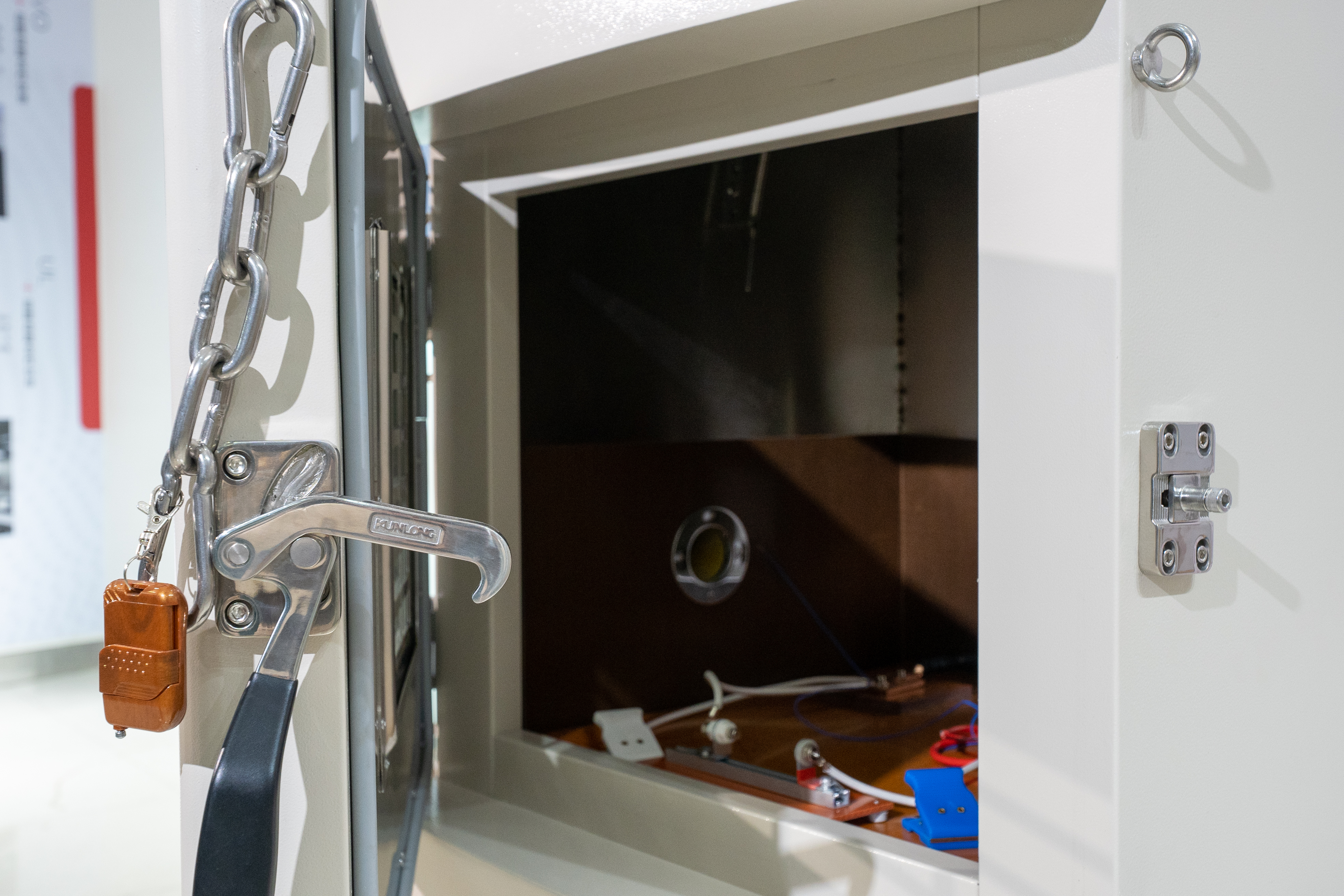

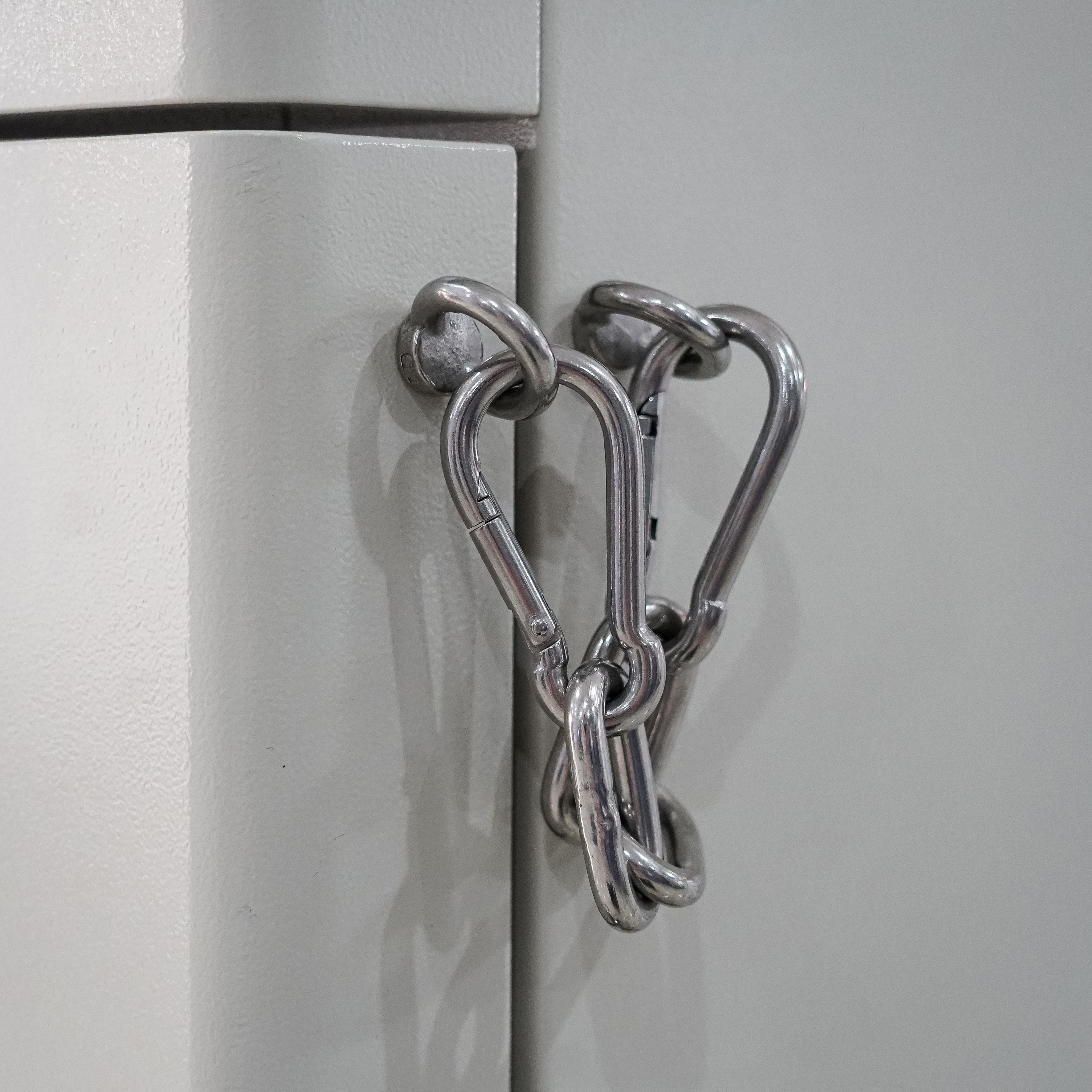

box door Single door, left opening
Box door switch A threshold switch that switches off when opened ensures that there is no inadvertent operation, guaranteeing the safety of personnel.

test hole

There is a φ50 mm test hole on the left or right side of the unit.

Convenient for placing various temperature, voltage and current collection lines.

caster Four universal castors underneath the machine for free movement.

Voltage Acquisition

Voltage range: 0~100V

Acquisition rate: 100ms

Number of channels: 1 channel

Accuracy: ±0.8% F.S (0~100V)

Current Acquisition

Current range: 0~1000A DCA

Acquisition rate: 100ms

Number of channels: 1 channel

Accuracy: ±0.5%F.S

Battery Temperature Acquisition

Temperature range: 0℃~1000℃

Acquisition rate: 100ms

Number of channels: 1 channel

Accuracy: ±2℃

Short circuit contactor life

300,000 times

Data export With USB data export port, you can export the report, view the test data and curves
power supply 3KW
Using the power supply 220V  50HZ
Outer box size Approx. 750*800*1800mm (W*D*H) subject to actual size
Equipment weight Approx. 200KG
Optional   Manual and automatic fire extinguishing function
