Friction fastness testing machine
Friction Fastness Testing Machine
01.Tailor-made sales and management model to maximize customer benefits!
Professional technical team, according to your company's specific situation, for you to customize your sales and management mode to maximize the benefits to customers.
02.10 years of experience in R & D and production of testing instruments brand trustworthy!
10 years focus on the development and production of environmental instruments, access to the national quality, service reputation AAA enterprise, China's market recognized brand-name products, China's battalion of famous brands and so on.
03.Patent! Access to dozens of national patent technology!
04.Introduction of advanced production equipment Quality assurance through international certification.
Introducing advanced production equipment and scientific management to ensure product quality. Passed ISO9001:2015 international quality standard system certification. The finished product rate is controlled above 98%.
05.Perfect after-sales service system to provide you with professional technical support!
Professional after-sales service team, 24 hours congratulations on your call. Timely for you to solve the problem.
Free product warranty of 12 months, lifelong equipment maintenance.
Product Description

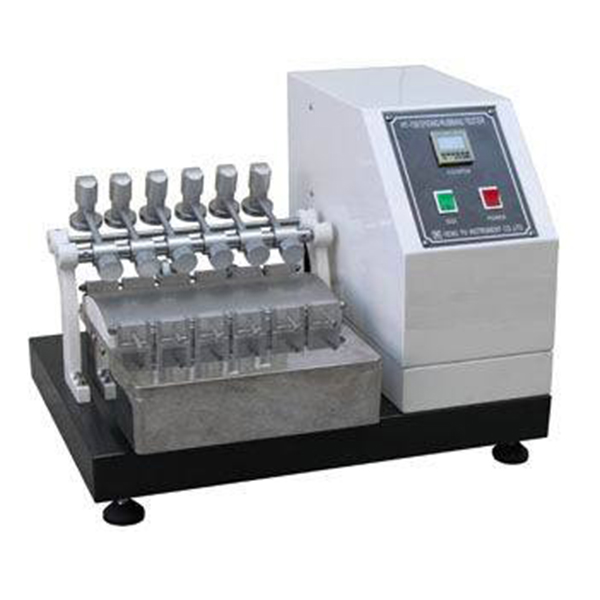

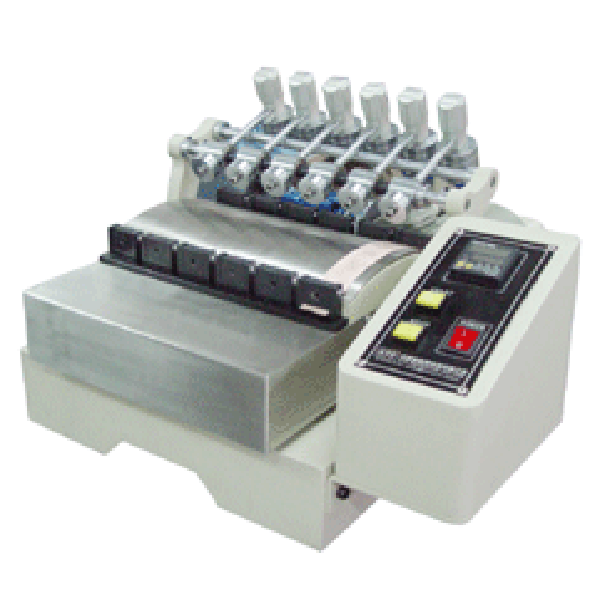

Friction Fastness Testing Machine
Use dry or wet textiles, leather, etc. to tie on the surface of the friction hammer of the machine. Rub the colored test piece with a certain load and number of times, and compare it with the gray mark to evaluate the dyeing friction fastness grade. It can also be used as an organic test piece. Friction test of flux.
Based on standards
Friction Fastness Testing Machine
JIS-L0801, 0823, 0849, 1006, 1084, K6328, P8236.
Specification
Friction Fastness Testing Machine
|
Friction speed |
30cpm |
|
Friction hammer load |
200g |
|
Auxiliary load |
300g |
|
Friction hammer size |
(45*50) mm |
|
Test piece |
(22*3)cm |
|
Friction frequency |
30/minute |
|
White cotton |
(5*5)cm |
|
Measuring stroke |
100 (mm) |
|
Machine weight |
about 60kg |
|
White cotton cloth friction area |
about 1cm2 |
|
Friction distance |
100mm |
|
Counter |
electronic 6 digits |
|
Number of friction groups |
6set |
|
Power supply |
AC220 50HZ |
|
Machine size |
about (50*55*35) cm |
|
Motor |
1/4HP |
Features
Friction Fastness Testing Machine
1. Friction head: The testing machine is equipped with a high-quality friction head, usually made of stainless steel or other wear-resistant materials to ensure that it is not prone to wear and tear after long-term use.
2. Electric drive: The testing machine adopts an electric drive system, which can accurately control the rotation speed and movement mode of the friction head to simulate different usage conditions.
3. Sample clamping device: The testing machine is equipped with a clamping device that can fix the sample and ensure its stability during the testing process to ensure the accuracy of the test results.
4. Control system: The testing machine is equipped with an advanced control system that can accurately control test parameters, such as rotation speed, test time, etc., to achieve a standardized test process.
5. Data recording and analysis: The testing machine can automatically record test data and provide data analysis functions so that users can evaluate and compare test results.
6. Safety protection: Testing machines usually have safety protection devices, such as emergency stop buttons, overload protection, etc., to ensure the safety of operators and equipment.
