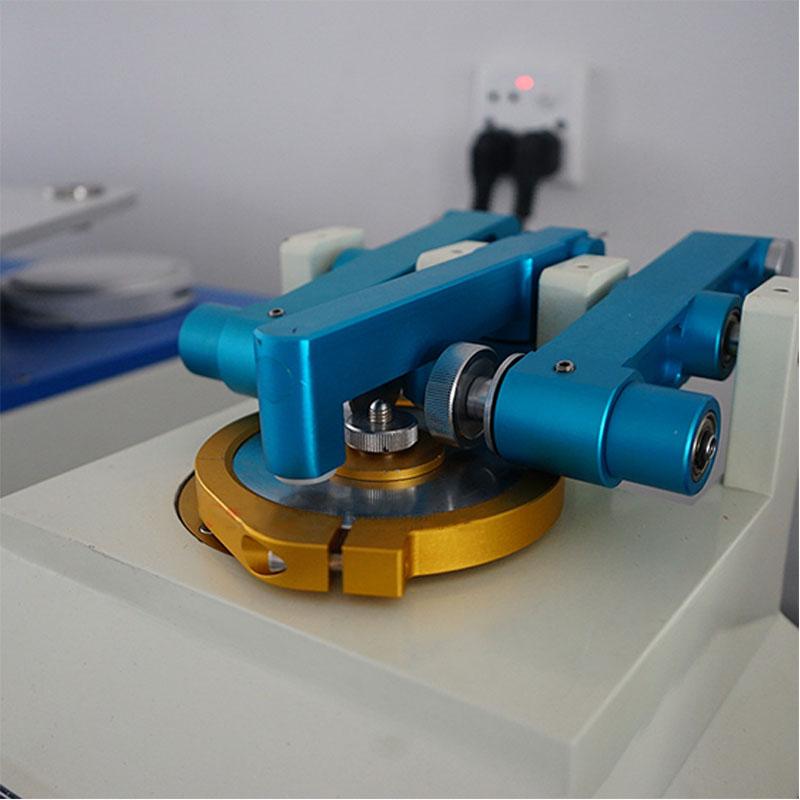

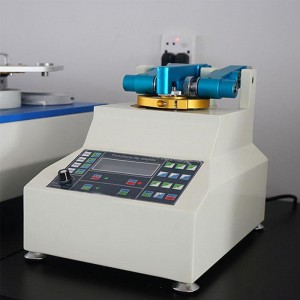

Fabric and clothing wear resistance testing machine

Short Description:

This instrument is used to measure various textiles (from very thin silk to thicker woolen fabrics, camel hair, carpets) knitted products. (such as comparing the toe, heel and body of a sock) the wear resistance. After replacing the grinding wheel, it is also suitable for wear resistance testing of leather, rubber, plastic sheets and other materials.

Applicable standards: ASTM D3884, DIN56963.2, ISO5470-1, QB/T2726, etc.


Product Detail

Product Tags

Testing Principle

Fabric clothing abrasion tester uses a special friction device to conduct round-trip friction test on the specimen under specific test conditions. By observing the degree of wear and tear of the specimen in the friction process, colour changes and other indicators, so as to assess the abrasion resistance of the fabric.

The test steps

1. according to the type of specimen and test requirements, select the appropriate friction head and test load.
2. fix the specimen on the test bench, make sure the friction part is perpendicular to the friction head and the range is moderate. 3. set the test times and friction speed.
3. Set the number of tests and friction speed, start the test. 4.
4. Observe the wear condition of the specimen during the friction process and record the test results.

Using the fabric and garment abrasion resistance testing machine, enterprises and designers can understand the abrasion resistance of fabrics more deeply and provide scientific basis for product design and production. At the same time, the equipment helps to improve the quality of fabrics and meet consumer demand for comfort and durability.

Model

KS-X56

Working disc diameter:

Φ115mm

 Working plate speed:

75r/min

 Grinding wheel dimensions:

 diameter Φ50mm, thickness 13mm

 Counting method:

 Electronic counter 0~999999 times, any setting

 Pressurization method:

rely on the self-weight of the pressure sleeve 250cN or add a weight combination

Weight:

Weight (1): 750cN (based on unit weight)

Weight (2): 250cN

Weight (3): 125cN

 Maximum thickness of specimen:

20mm

 Vacuum cleaner:

BSW-1000 type

 Maximum power consumption:

1400W

 Power supply:

AC220V frequency 50Hz
