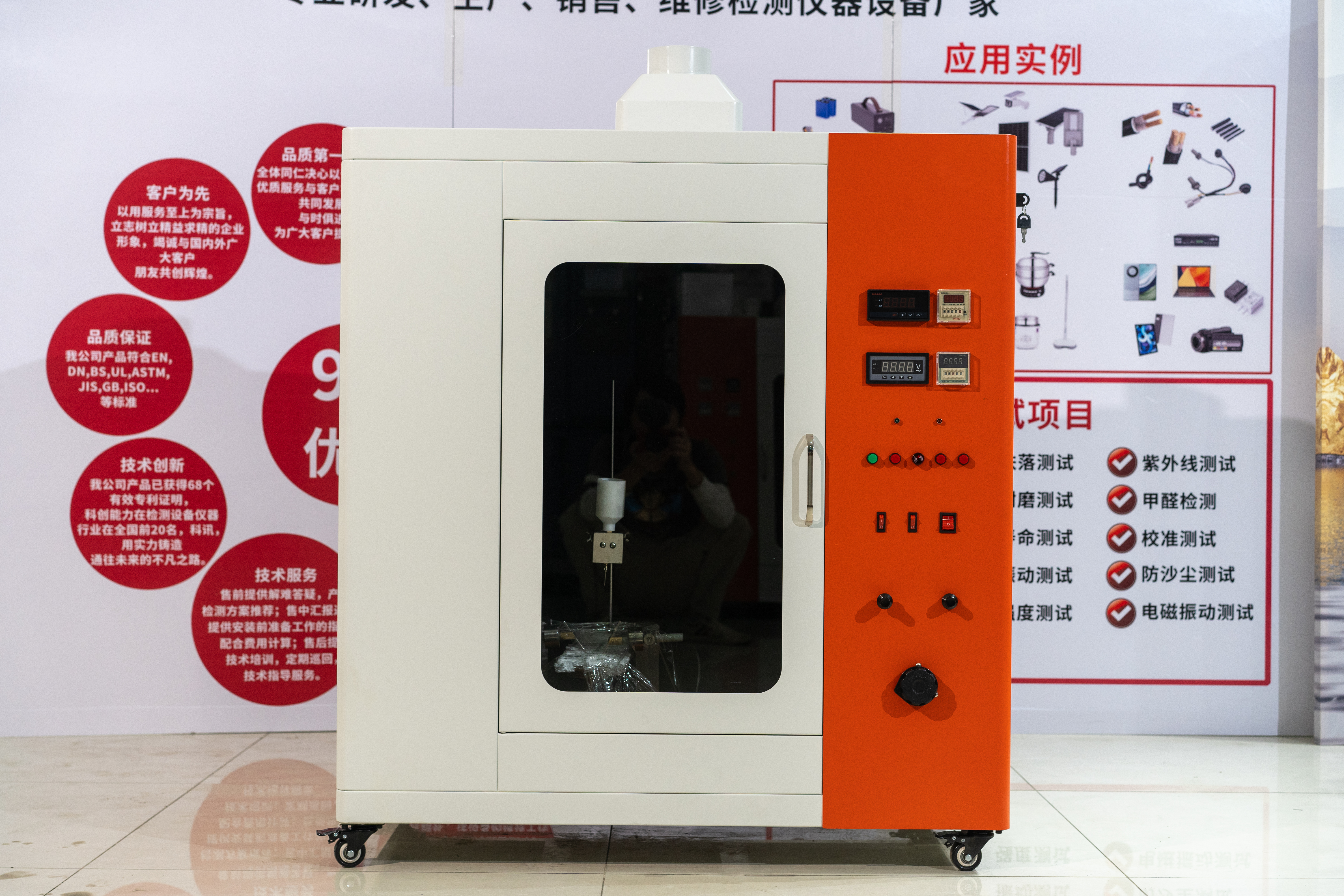

Tracking Test Apparatus

Short Description:

The use of  rectangular platinum electrodes, the two poles of the specimen force were 1.0N ± 0.05 N. Applied voltage in the 100 ~ 600V (48 ~ 60Hz) between the adjustable, short-circuit current in the 1.0 ± 0.1A, the voltage drop should be no more than 10%, when the test circuit, the short-circuit leakage current is equal to or greater than 0.5A, the time is maintained for 2 seconds, the relay action to cut off the current, the indication of the The test piece fails. Dropping device time constant adjustable, precise control of drop size 44 ~ 50 drops / cm3 and drop interval 30 ± 5 seconds.


Product Detail

Product Tags

Product Model

KS-DC45

Experimental principles

The use of rectangular platinum electrodes, the two poles of the specimen force were 1.0N ± 0.05 N. Applied voltage in the 100 ~ 600V (48 ~ 60Hz) between the adjustable, short-circuit current in the 1.0 ± 0.1A, the voltage drop should be no more than 10%, when the test circuit, the short-circuit leakage current is equal to or greater than 0.5A, the time is maintained for 2 seconds, the relay action to cut off the current, the indication of the The test piece fails. Dropping device time constant adjustable, precise control of drop size 44 ~ 50 drops / cm3 and drop interval 30 ± 5 seconds.

Pictures are for reference only, subject to the real thing

a

Meets criteria

GB/T4207 test standard

Main Technical Parameters

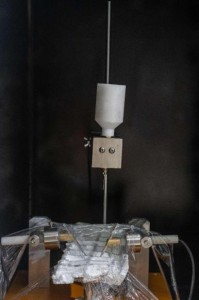

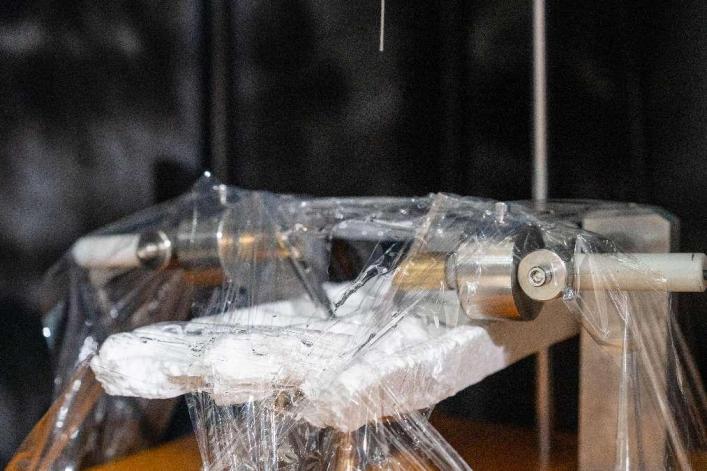

1、Electrodes: two rectangular platinum electrodes with cross-sectional area of 2mm×5mm and 30° bevelled edge at one end.
2、Surface force: 1.0±0.05N
3、Test voltage: 100~600V
4、Maximum test current: 3A
5、Distance between two electrodes:4.0mm
6、Drip device: the drip time interval can be set arbitrarily

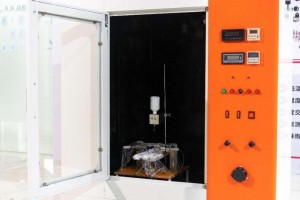

7、Test chamber volume: 0.5M3,DxWxH: 60x95x90cm
8、Overall dimensions: depth x width x height:61x120x105cm

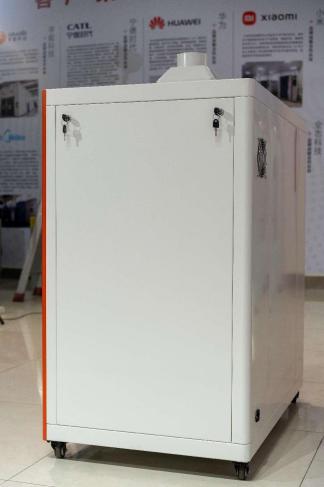

9、Box material: electrostatic baking paint and mirror stainless steel.
