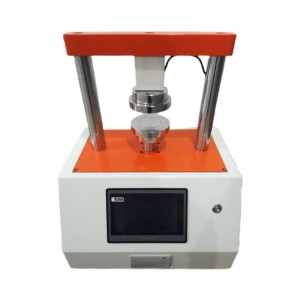

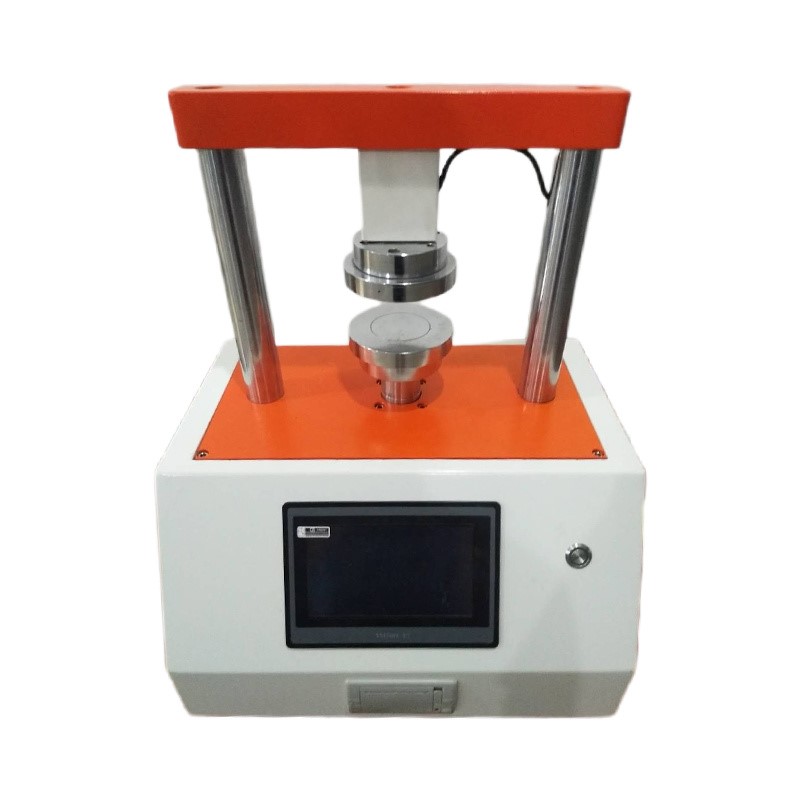

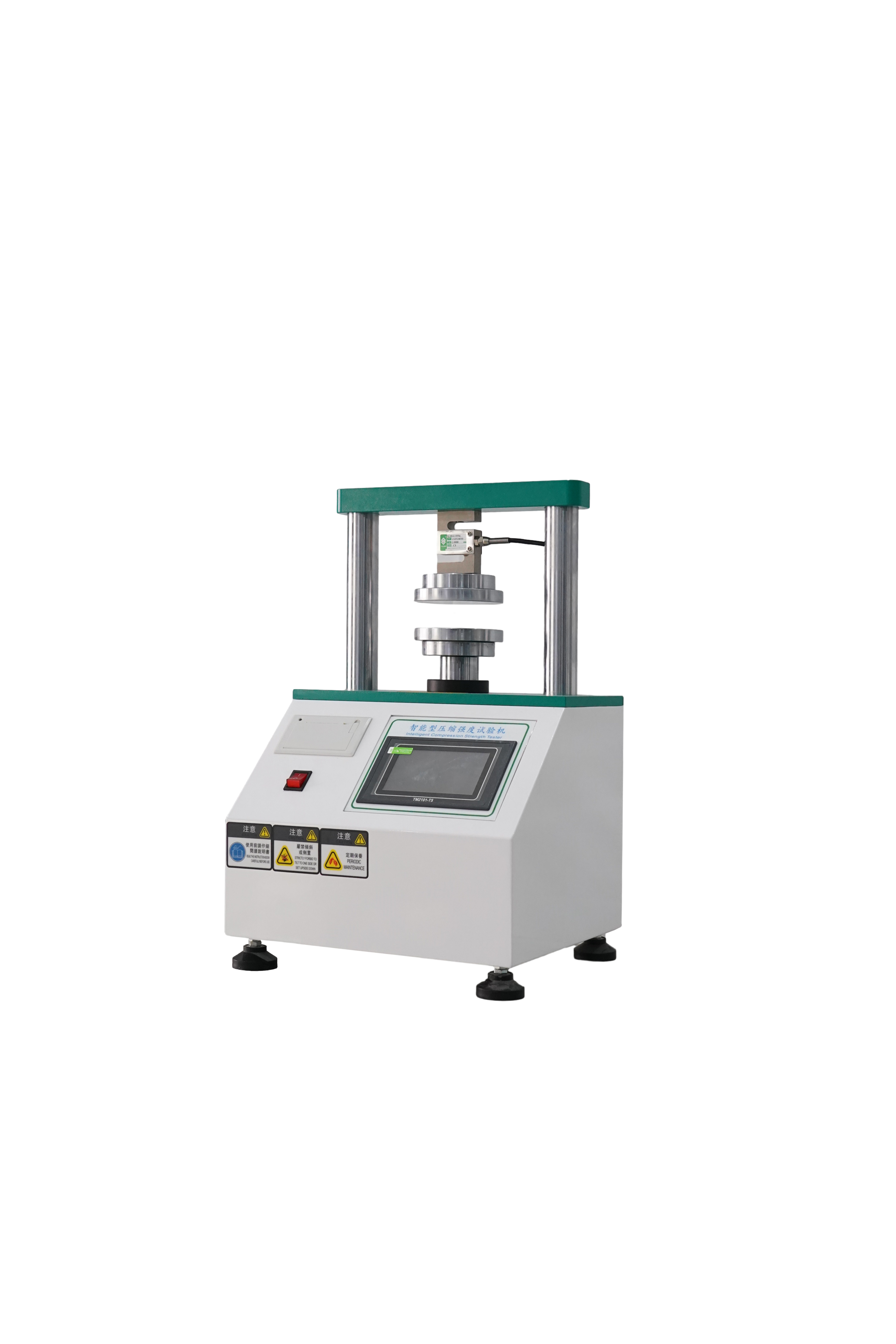

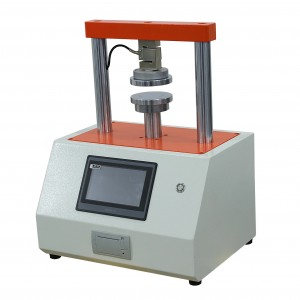

Carton edge compression strength tester

Short Description:

 This test apparatus is a multifunctional testing apparatus manufactured by our company, which can do ring and edge pressing strength and gluing strength, as well as tensile and peeling tests.


Product Detail

Product Tags

Application

The Intelligent Cardboard Edge Compression Strength Tester, also known as the Computer Measurement and Control Compression Tester, Cardboard Compression Tester, Electronic Compression Tester, Edge Pressure Tester, and Ring Pressure Tester, is a fundamental instrument used for testing the compressive strength performance of cardboard/paper (i.e., paper packaging testing instrument). Equipped with various fixture accessories, it can test the ring compression strength of base paper, flat compression strength of cardboard, edge compression strength, gluing strength, and other tests. This allows paper production enterprises to control production costs and improve product quality. The performance parameters and technical indicators of this instrument meet the relevant national standards.

Assistive devices (to be purchased separately upon customer's own request)

A. Ring press specimen holder (paper ring press strength test)

B. Special sample taker for ring press (paper ring press strength test)

C. Type paper and board thickness gauge (optional paper ring strength test)

D. Type edge press (bonding) sampler (corrugated board edge press strength test)

E. Adhesive strength test frame (corrugated board adhesive strength test)

2
4
Edge Compression Tester Manufacturers

ApplicationDisplay & Print

Ed digital tube display, thermal printer.

Product advantages: 1. Automatic return function after the completion of the test, automatically judge the crushing force and automatically save the test data 2. Three sets of speed, all Chinese LCD display operation interface, a variety of units to choose from. 3. Can input the relevant data and automatically convert the ring pressure strength, edge pressure strength, with packaging stacking test function; Can directly set the force, time, after the completion of the test automatically shut down.

kzCgEy59QUKWRNkRr7V5NxADHzw
Model KS-Z54
Test range 0-500N; 0-1500N; 0-3000N
Accuracy of display ±1%
Print result 4 valid digits
Resolution 1N for 3000N and 1500N; 0.5N for 500N
Compression speed 12.5 ± 2.5mm/min
Platen size ∮120
LCD display with valid value bits 4 bits
