Backpack Test Machine

Short Description:

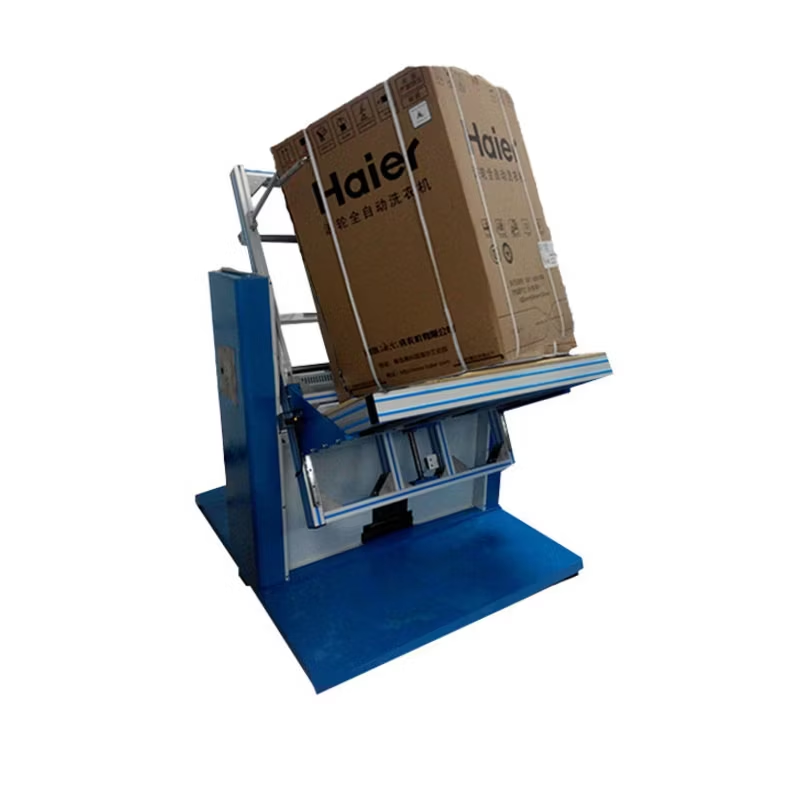

The backpack test machine simulates the process of carrying (backpacking) test samples by staff, with different tilt angles and different speeds for the samples, which can simulate different conditions of different staff in carrying.

It is used to simulate the damage of washing machines, refrigerators and other similar home appliances when they are transported on their backs in order to assess the quality of the tested products and to make improvements.


Product Detail

Product Tags

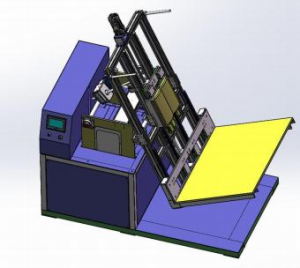

Structure and working principle

Model

KS-BF608

Test power

220V/50Hz

Laboratory working temperature

10°C - 40°C, 40% - 90% relative humidity

Test acceleration

Adjustable from 5.0g to 50g; (simulates the acceleration of handling impacts on the product)

Pulse duration (ms)

6~18ms

Peak acceleration (m/s2)

≥100

Sampling frequency

192 kHz

Control accuracy

<3%

testing times

100 times ( simulated height of move to 6th floor )

test frequency

1 ~ 25 times / min ( simulated walking speed during handling )

Vertical stroke adjustment 150mm, 175mm, 200mm three gear adjustment ( simulation of different stair height )

Simulated human back adjustable height 300-1000mm ; length 300mm

Protective device to prevent the refrigerator toppling ; the equipment is rounded at the right angle.

Simulated rubber block with human back.

Maximum  load

500kg
