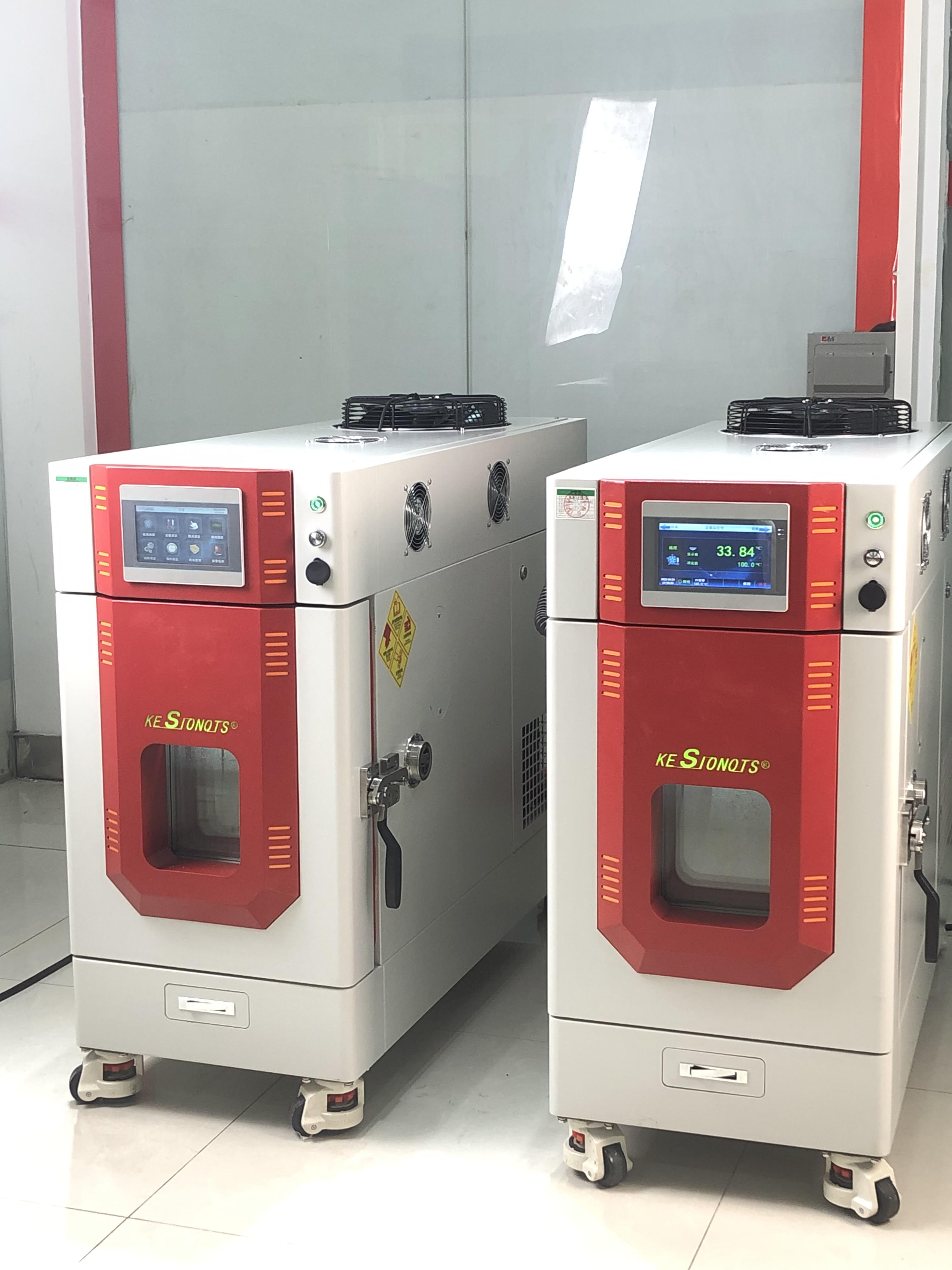

36L Constant Temperature and Humidity Chamber

Short Description:

Constant temperature and humidity chamber is a kind of test equipment to simulate and maintain a constant temperature and humidity environment, which is widely used in various fields of product research and development, quality control and preservation tests. It is capable of providing stable environmental conditions for the test specimen within the set temperature and humidity range.


Product Detail

Product Tags

Product Model

KS-HW36L-20-1

Areas of application

asd (1)
asd (2)
asd (3)
asd (4)
asd (5)
asd (6)

Advantages - Features







specificities

1.Support mobile phone APP control, easy to monitor and control the equipment in real time; (Remarks required before ordering)

2. Environmental protection and energy saving power saving at least 30%: the use of international popular refrigeration mode, can be 0% ~ 100% automatic adjustment of the compressor refrigeration power, compared with the traditional heating balance temperature control mode of energy consumption reduced by 30%;

3. Equipment resolution accuracy of 0.01, more accurate test data;

4. The whole machine is processed and shaped by laser numerical control machine tool, and the thickness of the plate is 1.5mm, which is strong and solid;

5. With RS232/485/LAN network port and other interfaces to provide communication functions and provide access to equipment management system technical support communication devices to facilitate the import and export of test data, and remote control;

6. Low-voltage electrics adopt the original French Schneider brand, stronger stability and longer life;

7. box body on both sides of the insulated cable holes, convenient two-way power, insulation and safer;

8. The control system supports secondary development control, which can be expanded according to customer needs, and is more flexible.

9. 18 ultra-safe protection device equipment all-round safety protection.

10. Large vacuum window with lighting to keep the box bright, and the use of heat in the body embedded tempered glass, at any time to clearly observe the situation inside the box;

Volume and dimensions

Effective volume

36L

Working size

300×400×300 (W*H*D)mm

Outer box size

约500×1060×1300(W*H*D)mm

Temperature range

-20℃~+150℃  (Range customisable)

Humidity range

20%~98%RH

Temperature rise

≥3.5℃/min

Cooling rate

≥1℃/min

Temperature/Humidity Resolution Accuracy

0.01

Temperature/humidity fluctuation

±0.5℃/≤±2.0%R.H

Temperature deviation

±1℃

Humidity deviation

Below 75%RH≤±5.0%RH, above 75%RH≤+2/-3%R.H

Noise level

Measured according to GB/T14623-2008, the noise is ≤75dB (measured at 1m from the equipment gate by the noise detection device).

Cooling method

The equipment adopts/air-cooled

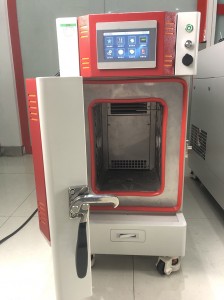

Pictures are for reference only, subject to the real thing
