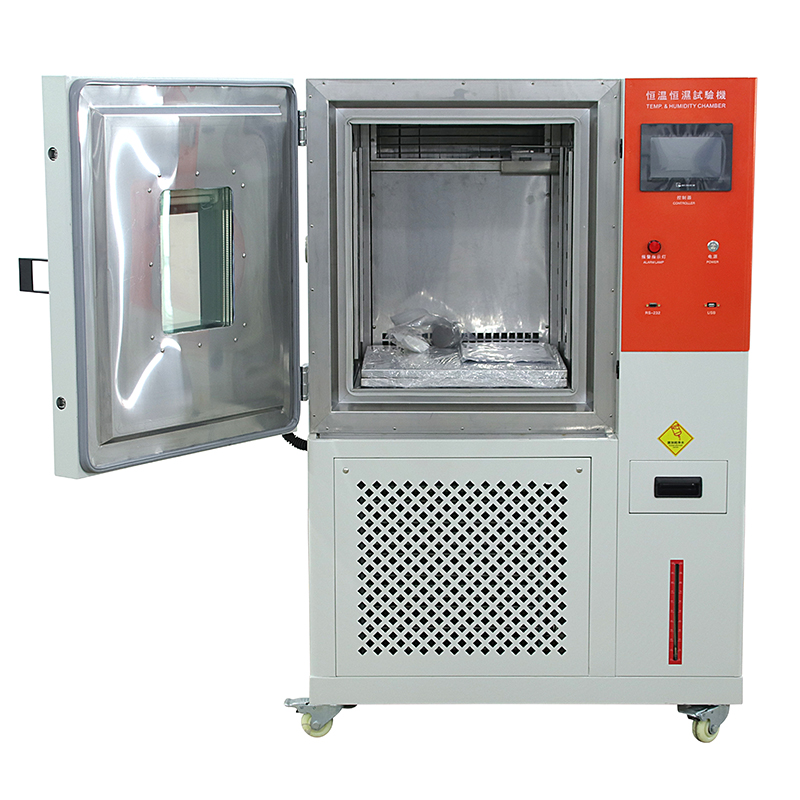

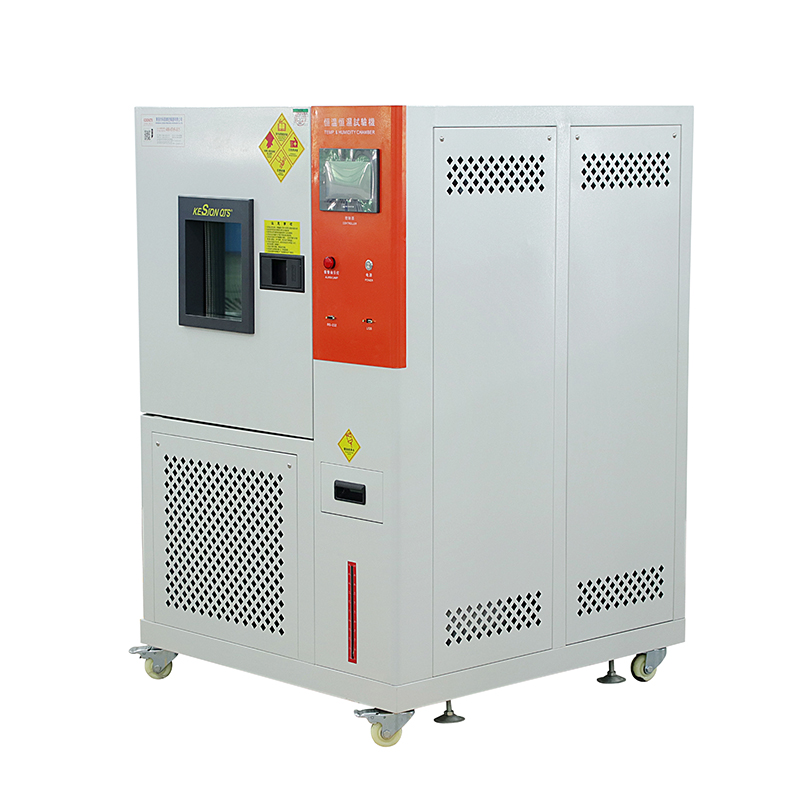

80L Constant Temperature and Humidity Chamber

Short Description:

80L Constant Temperature and Humidity Chamber can be used to simulate and maintain specific temperature and humidity environments for testing and storage of various materials, products and samples. It is widely used for product development, quality control and storage tests in the fields of pharmaceuticals, food, materials, biology and medicine.

Send email to us

Product Detail

Product Tags

Product Model

KS-HW80L-60-1

Areas of application

Volume and size

Effective volume	80L
Working size	400500400 (WHD)mm
Outer box size	约8501440955(WHD)mm
Temperature range	-60℃~+150℃ （Range customisable）
Humidity range	20%～98%RH
temperature rise	≥3.5℃/min
Cooling rate	≥1℃/min
Temperature/Humidity Resolution Accuracy	0.01
Temperature/humidity fluctuation	±0.5℃/≤±2.0%R.H
Temperature deviation	±1℃
Humidity deviationl	Below 75%RH≤±5.0%RH, above 75%RH≤+2/-3%R.H
Noise level	Measured according to GB/T14623-2008, the noise is ≤75dB (measured at 1m from the equipment gate by the noise detection device).
Cooling method	The equipment adopts/air-cooled
Pictures are for reference only, subject to the real thing

Volume and dimensions

Effective volume	36L
Working size	300×400×300 (WHD)mm
Outer box size	约500×1060×1300(WHD)mm
Temperature range	-20℃~+150℃ （Range customisable）
Humidity range	20%～98%RH
Temperature rise	≥3.5℃/min
Cooling rate	≥1℃/min
Temperature/Humidity Resolution Accuracy	0.01
Temperature/humidity fluctuation	±0.5℃/≤±2.0%R.H
Temperature deviation	±1℃
Humidity deviation	Below 75%RH≤±5.0%RH, above 75%RH≤+2/-3%R.H
Noise level	Measured according to GB/T14623-2008, the noise is ≤75dB (measured at 1m from the equipment gate by the noise detection device).
Cooling method	The equipment adopts/air-cooled
Pictures are for reference only, subject to the real thing

Model	KS-HW80L	KS-HW100L	KS-HW150L	KS-HW225L	KS-HW408L	KS-HW800L	KS-HW1000L
WHD(cm)Internal Dimensions	405040	505040	506050	607550	808560	100100800	100100100
WHD(cm)External Dimensions	60157147	100156154	100166154	100181165	110191167	150186187	150207207
Inner Chamber Volume	80L	100L	150L	225L	408L	800L	1000L
Temperature range	-70℃~+100℃（150℃）(A:+25℃; B:0℃; C:-20℃; D: -40℃; E:-50℃; F:-60℃; G:-70℃)
Humidity range	20%-98%R.H.(10%-98%R.H/5%-98%R.H for special selection conditions)
Temperature and humidity analysis accuracy/uniformity	±0.1℃C; ±0.1%R.H./±1.0℃: ±3.0%R.H.
Temperature and humidity control accuracy / fluctuation	±1.0℃; ±2.0%R.H./±0.5℃; ±2.0%R.H.
Temperature rising/cooling time	(Approx. 4.0°C/min; approx. 1.0°C/min (5-10°C drop per minute for special selection conditions)
Inner and outer parts materials	Outer box: Advanced Cold Panel Na-no Baking Paint; Inner box: Stainless steel
Insulation material	High temperature and high density chlorine containing formic acid acetic acid foam insulation materials

Production process

Technical features - Copper tube technology

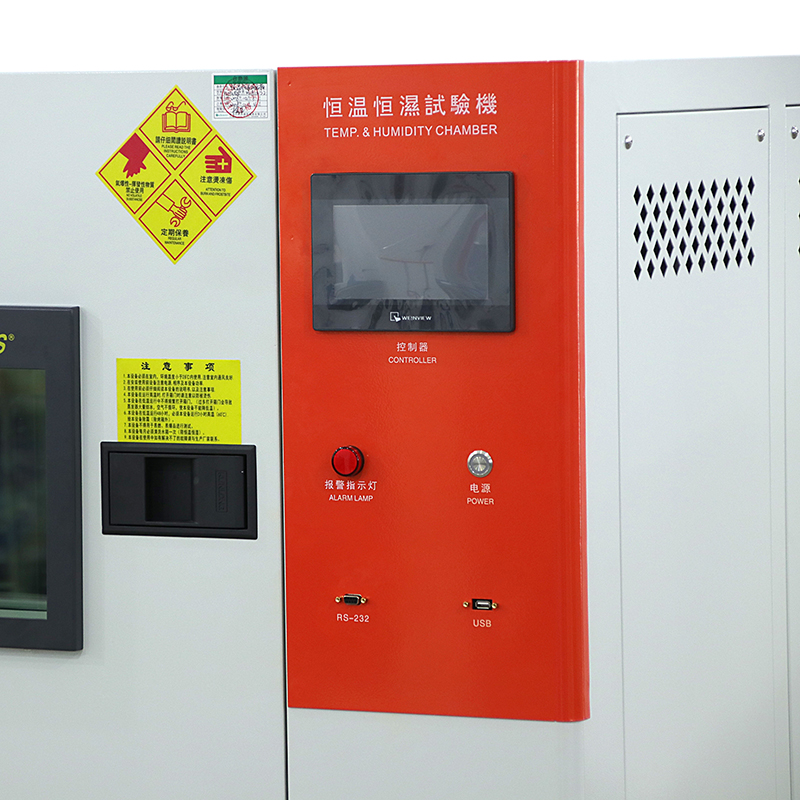

Technical features - electronic control system

Technical features - vibration and noise reduction

◉Reduces vibration, protects compressor, protects components;◉Reduces the failure rate and improves the service life of the equipment;◉Reduces noise and protects the health of the user.

Quality Inspection

The incoming materials, semi-finished products, finished products are strictly check at all levels, the concept of full quality control. Let customers use stable, reliable, assured test equipment. Kexun products have passed the acceptance and measurement of Saipao Laboratory, Guangdian Measurement, Fujian Measurement Institute, Shanghai Measurement Institute, Jiangsu Measurement Institute, Beijing Measurement Institute, etc., and all of them are highly evaluated.
